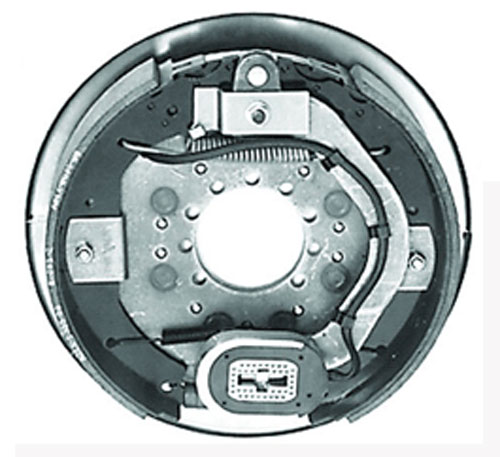

Dexter/Hayes/Al-ko/Quality/Rockwell 12 1/4 x 3 3/8" Electric Brake 5 Bolt
- Capacity: 10,000 Lbs. Per Pair
- 5 bolt flange
- Fits Quality Trailer Parts and Rockwell American axles
PART NO.
REF. NO.
DESCRIPTION
ITEM
EB01-150
Trailer Parts Pro 5 bolt complete brake assembly left hand
EB01-155
Trailer Parts Pro 5 bolt complete brake assembly right hand

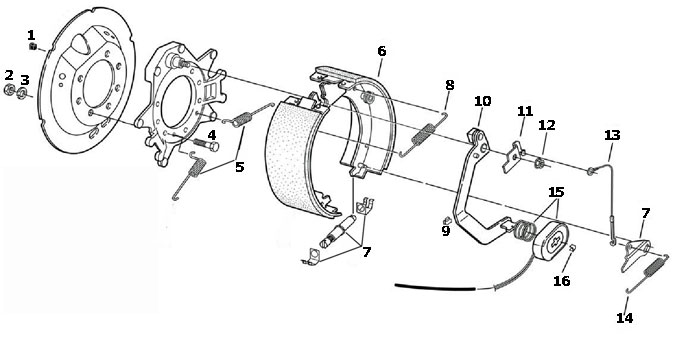

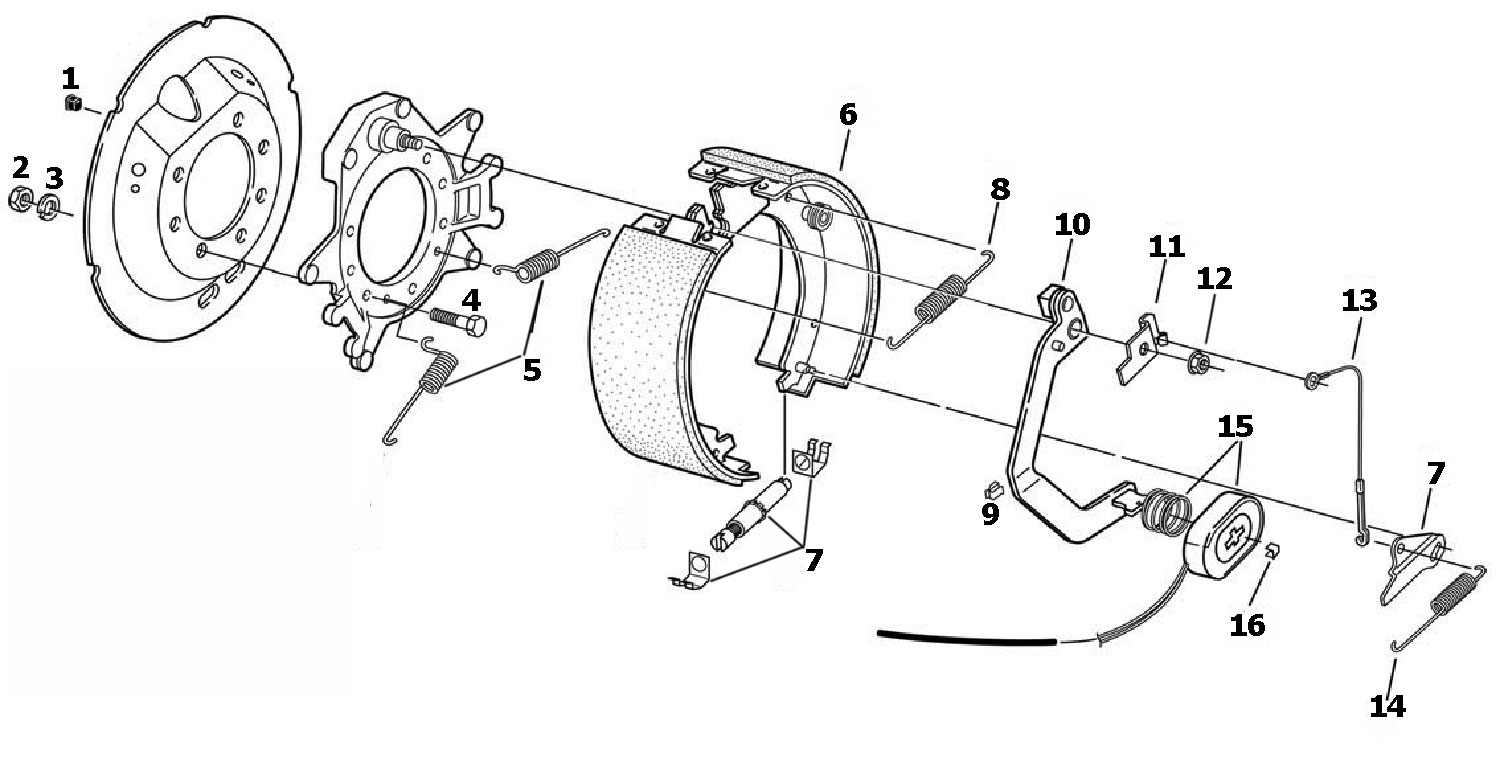

PART NO.
REF. NO.
DESCRIPTION
ITEM
D046-016-00
Wire grommet
1
6-46
1/2"-20 brake mounting nut
2
D005-58-00
1/2" brake mounting lock washer
3
7-97
1/2"-20 brake mounting bolt
4
BP07-195
Shoe centering spring
5
BP04-245
Shoe & Lining (One Wheel) Left Hand After May 2000
6
BP04-255
Shoe & Lining (One Wheel) Right Hand After May 2000
6
BP10-136
Adjuster, lever & clips, left hand
7
BP10-146
Adjuster, lever & clips right hand
7
BP07-190
Shoe Return Spring
8
BP02-327
Actuating Arm, Left Hand For Forward Adjust
10
BP02-328
Actuating Arm, Right Hand For Forward Adjust
10
71-455-1
Actuating Arm/Shoe Retainer, Left Hand
11
71-455-2
Actuating Arm/Shoe Retainer, Right Hand
11
6-92
7/16"-20 Flange locking nut
12
BP13-022
Adjuster Cable
13
BP08-155
Adjuster Spring
14
BP01-330
Magnet Kit 8,000 Lb. Oval (Red/Black Wire) after 7/1/2017
17
BP01-301
197410
Magnet Kit, 9-10K Oval (Yellow Wire) Reference Only New P/N Above
15
BP19-005
Magnet Retainer Clip, Pkg of 4
16
