PART NO.
REF. NO.
DESCRIPTION
ITEM
K23-312-00
Dexter complete brake assembly, left hand, uni-servo
K23-213-00
Dexter complete brake assembly, right hand, uni-servo
K23-344-00
Dexter complete brake assembly, left hand, free backing
K23-345-00
Dexter complete brake assembly, right hand, free backing
23-312
174625
Dexter complete brake assembly, left hand, uni-servo Reference Only New P/N Above
23-213
174650
Dexter complete brake assembly, right hand, uni-servo Reference Only New P/N Above
23-344
175200
Dexter complete brake assembly, left hand, free backing Reference Only New P/N Above
23-345
175250
Dexter complete brake assembly, right hand, free backing Reference Only New P/N Above
HB01-100
Trailer Parts Pro complete brake assembly, left hand, dacromet, free backing
HB01-105
Dexter complete brake assembly, right hand, dacromet, free backing
18787
Demco complete brake assembly, galvanized, uni-servo, right hand
18788
Demco complete brake assembly, galvanized, uni-servo, left hand
40715
Demco complete brake assembly, galvanized, free backing, right hand
40716
Demco complete brake assembly, galvanized, free backing, left hand

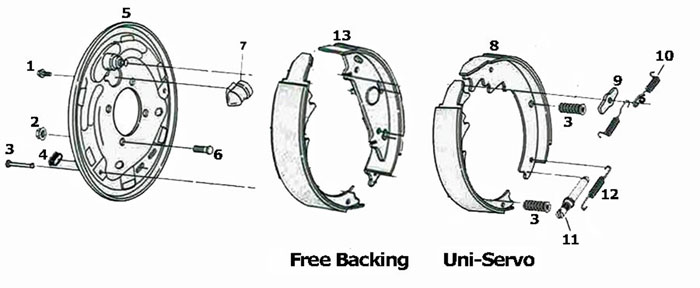

PART NO.
REF. NO.
DESCRIPTION
ITEM
87-1
Screw and washer assembly
1
6-17
7/16" Brake mounting hex nut
2
BP06-120
Shoe Hold Down Spring (1 Wheel)
3
BP10-220
Adjuster Dust Plug, Pkg of 4
4
36-94-3
235036
Backing plate Discontinued Reference Only
5
D007-041-00
7/16"-20 Press-in brake mounting stud
6
BP17-020
Wheel Cylinder Assembly, Right Hand
7
BP17-030
Wheel Cylinder Assembly, Left Hand
7
BP04-120
Shoe/Lining (One Wheel)
8
D005-113-00
1/2" .127 wing washer
9
BP107-105
Shoe Return Spring uni-servo
10
BP10-060
Adjuster Dexter, Demco/Dico
11
BP08-080
Adjuster Spring Bendix, Dexter, Demco/Dico uni-servo
12
BP04-123
Dexter Shoe/Lining (One Wheel) Freebacking
13
BP04-126
Shoe/Lining (One Wheel) Demco/Dico Freebacking
13
K71-426
Shoe Return Spring Set Dexter Freebacking
NS
BRK-DEM10HFB-SRS
216845
Shoe Return Spring Set Demco Freebacking Discontinued Reference Only
NS
