PART NO.
REF. NO.
DESCRIPTION
ITEM
K23-324-00
Dexter complete brake assembly uni-servo, left hand 5.2K per pair
K23-325-00
Dexter complete brake assembly uni-servo, right hand 5.2K per pair
K23-322-00
Dexter complete brake assembly duo-servo, left hand 5.2K per pair
K23-323-00
Dexter complete brake assembly duo-servo, right hand 5.2K per pair
K23-338-00
Dexter complete brake assembly uni-servo, left hand 7K per pair
K23-339-00
Dexter complete brake assembly uni-servo, right hand 7K per pair
K23-342-00
Dexter complete brake assembly free backing, left hand 7K per pair
K23-343-00
Dexter complete brake assembly free backing, right hand 7K per pair
K23-336-00
Dexter complete brake assembly duo-servo, left hand 7K per pair
K23-337-00
Dexter complete brake assembly duo-servo, right hand 7K per pair
23-324
175425
Dexter complete brake assembly uni-servo, left hand 5.2K per pair Reference Only New P/N Above
23-325
175450
Dexter complete brake assembly uni-servo, right hand 5.2K per pair Reference Only New P/N Above
23-322
176225
Dexter complete brake assembly duo-servo, left hand 5.2K per pair Reference Only New P/N Above
23-323
176250
Dexter complete brake assembly duo-servo, right hand 5.2K per pair Reference Only New P/N Above
23-338
175460
Dexter complete brake assembly uni-servo, left hand 7K per pair Reference Only New P/N Above
23-339
175465
Dexter complete brake assembly uni-servo, right hand 7K per pair Reference Only New P/N Above
23-342
175500
Dexter complete brake assembly free backing, left hand 7K per pair Reference Only New P/N Above
23-343
175550
Dexter complete brake assembly free backing, right hand 7K per pair Reference Only New P/N Above
23-336
176549<
Dexter complete brake assembly duo-servo, left hand 7K per pair Reference Only New P/N Above
23-337
176550
Dexter complete brake assembly duo-servo, right hand 7K per pair Reference Only New P/N Above
HB01-120
Trailer Parts Pro complete brake assembly, left hand, dacromet, free-backing, 6/7K per pair
HB01-125
Trailer Parts Pro complete brake assembly, right hand, dacromet, free-backing, 6/7K per pair
23510
Demco complete brake assembly, galvanized, right hand, uni-servo, 7K per pair
23511
Demco complete brake assembly, galvanized, left hand, uni-servo, 7K per pair
42028
Demco complete brake assembly, galvanized, right hand, free backing, 7K per pair
42029
Demco complete brake assembly, galvanized, left hand, free backing, 7K per pair

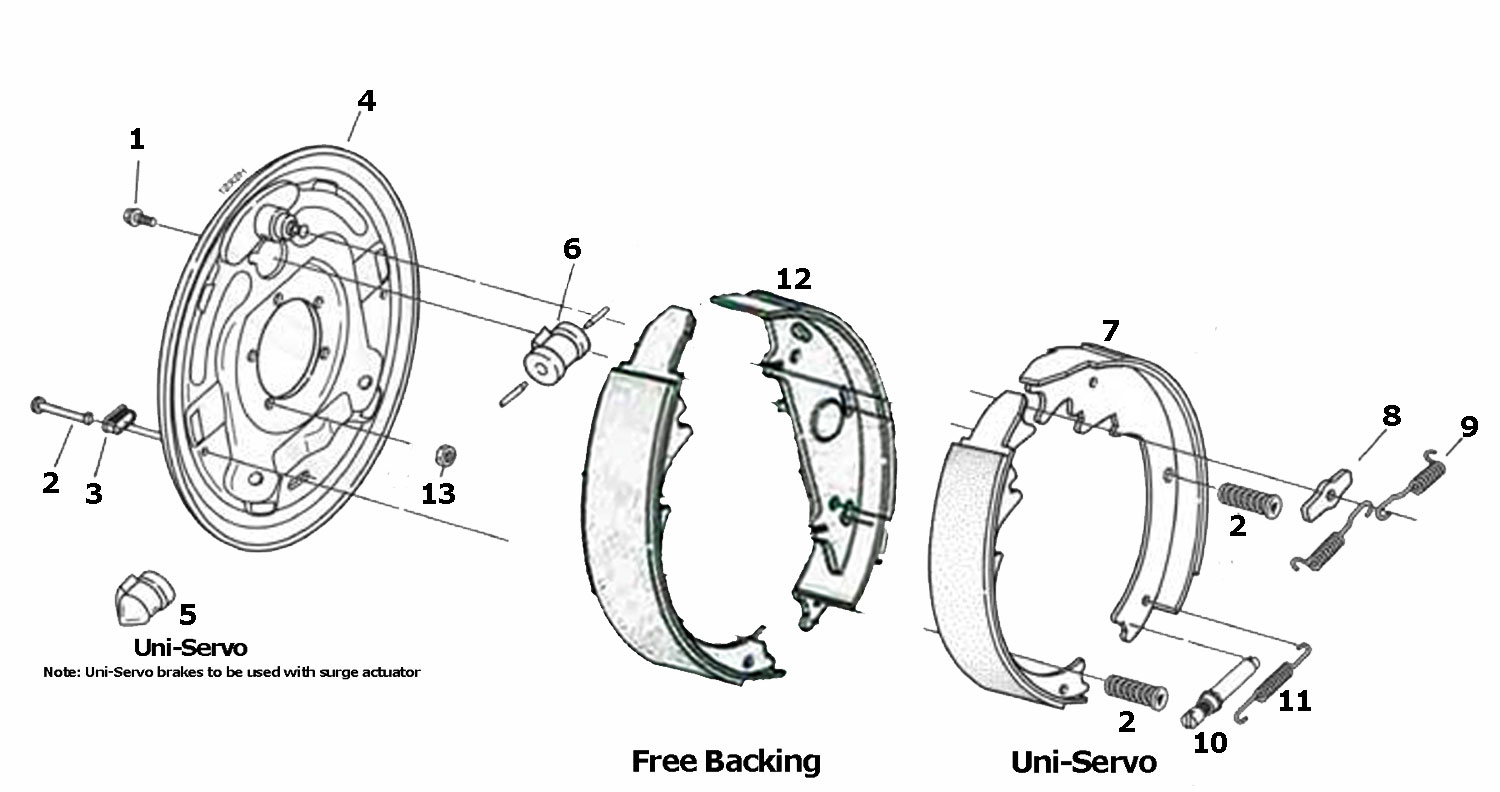

PART NO.
REF. NO.
DESCRIPTION
ITEM
87-1
Screw and washer assembly
1
BP06-090
Shoe Hold Down Spring (1 Wheel)
2
BP10-220
Adjuster Dust Plug, Pkg of 4
2
36-93-3
235045
Backing plate 5.2k Discontinued Reference Only
4
36-93-8
Backing plate 7k
4
BP17-020
Wheel Cylinder Assembly, Right Hand
5
BP17-030
Wheel Cylinder Assembly, Left Hand
5
BP17-040
Wheel cylinder assembly, right hand, duo-servo
6
BP17-050
Wheel cylinder assembly, left hand, duo-servo
6
BP04-160
Shoe/Lining (One Wheel)
7
D005-113-00
1/2" .127 wing washer
8
BP07-175
Shoe Return Springs
9
BP10-045
Adjuster free backing
10
BP08-120
Adjuster Spring
11
D046-123-00
Adjuster Spring free backing
11
BP04-162
Shoe/Lining (One Wheel) Right Hand Dexter Freebacking
12
BP04-164
Shoe/Lining (One Wheel) Left Hand Dexter Freebacking
12
BP04-168
Shoe/Lining (One Wheel) Demco Freebacking
12
6-193
Brake mounting nut
13
BP07-121
Shoe Return Spring Set (Upper & Lower) Dexter Freebacking
NS
BRK-DEM12HFB-SRS
Primary Shoe Return Spring Set (Upper & Lower) Demco Freebacking
NS
