TUBULAR 10,000 LB HEAVY DUTY AXLE SPECIFICATIONS

Suspension:

Leaf Spring Suspension
  • Mounted 3" Wide Slipper Eye, Rubber Bushing
(Spring Kits sold separately)
Adjustable Spring Seat: For Tracking Alignment (optional)

Bolt Pattern Options:

  • 8 on 6 1/2" (5/8" Studs), 4.75 Pilot

Brake Options:

  • 12 1/4" X 4" Electric-Forward Self-Adjusting
  • 12 1/4" X 4" Hydraulic - Forward Self-Adjusting, Uni or Duo-Servo, available with Parking feature
  • Hydraulic Disc
  • Air Brakes -
    Manual Slack Adjusters - Standard
    Automatic Slack Adjusters - Optional
  • ABS equipped option for hydraulic, Disc and Air brakes

Spindles:

Uses 395S Inner and 387A Outer Bearing
  • Straight

Tubing:

  • 5" OD
  • Optional HVY wall available for use with Air-Ride Suspension

Lubrication:

  • Oil Bath (Standard)
  • Grease

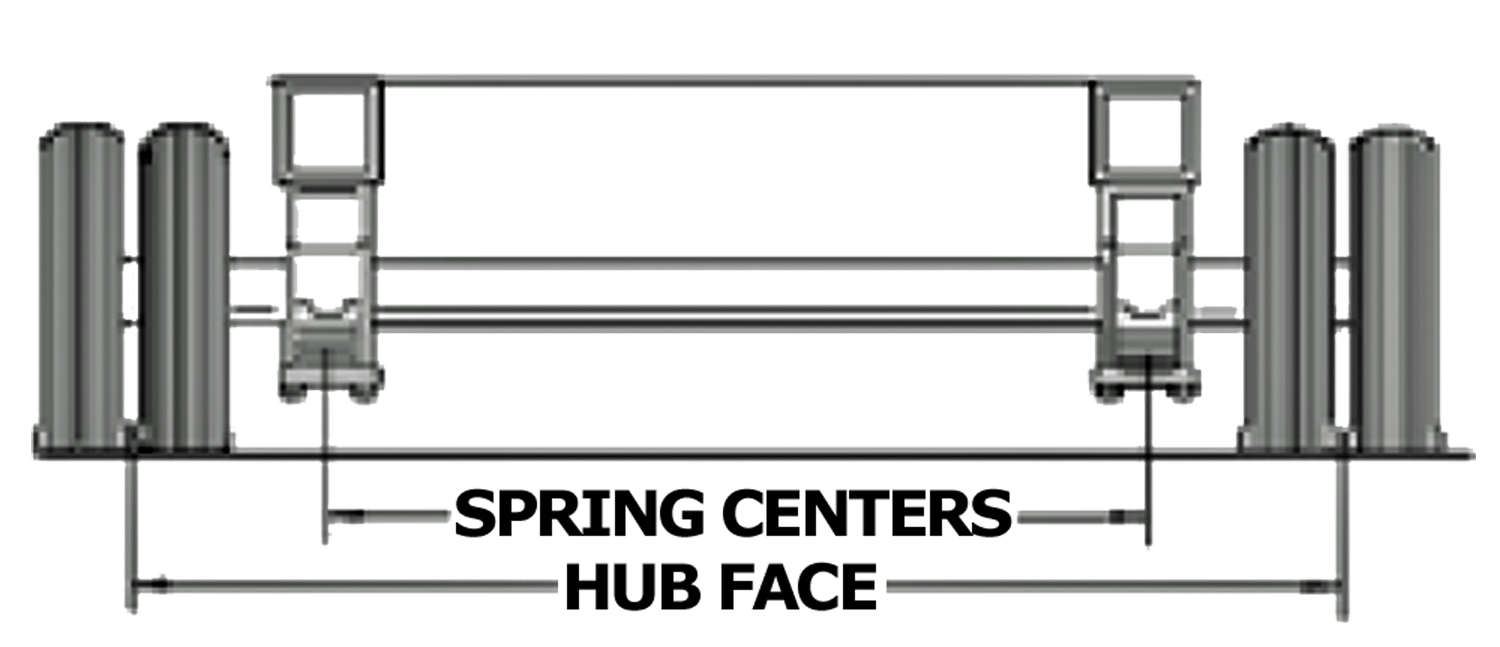

Dexter 10,000 lb Heavy Duty Axle Specifications
Overhang Restrictions
SPINDLE
HUB TYPE
MINIMUM
MAXIMUM
Single Wheel (HF)
ALL
25.38"
31"
Dual Wheel (TW)
ALL
26"
31"
NOTE: Minimums are based on manufacturing tolerances only. Some tire and wheel combinations may create interference.
Hubface (HF) used to specify applications using single wheels
Track Width (TW) used to specify applications using dual wheels.
