PART NO.
REF. NO.
DESCRIPTION
ITEM
K23-105-00
Dexter complete brake assembly 6k per pair capacity left hand
K23-106-00
Dexter complete brake assembly 6k per pair capacity right hand
K23-180-00
Dexter complete brake assembly 7k per pair capacity left hand
K23-181-00
Dexter complete brake assembly 7k per pair capacity right hand
23-105
182900
Dexter complete brake assembly 6k per pair capacity left hand Reference Only New P/N Above
23-106
183000
Dexter complete brake assembly 6k per pair capacity right hand Reference Only New P/N Above
23-180
184400
Dexter complete brake assembly 7k per pair capacity left hand Reference Only New P/N Above
23-181
184600
Dexter complete brake assembly 7k per pair capacity right hand Reference Only New P/N Above
EB01-120
Trailer Parts Pro complete brake assembly 6-7k per pair capacity left hand
EB01-125
Trailer Parts Pro complete brake assembly 6-7k per pair capacity right hand
BE12-70L
Trailer Parts Pro complete brake assembly 6-7k per pair capacity left hand
BE12-70R
Trailer Parts Pro complete brake assembly 6-7k per pair capacity right hand

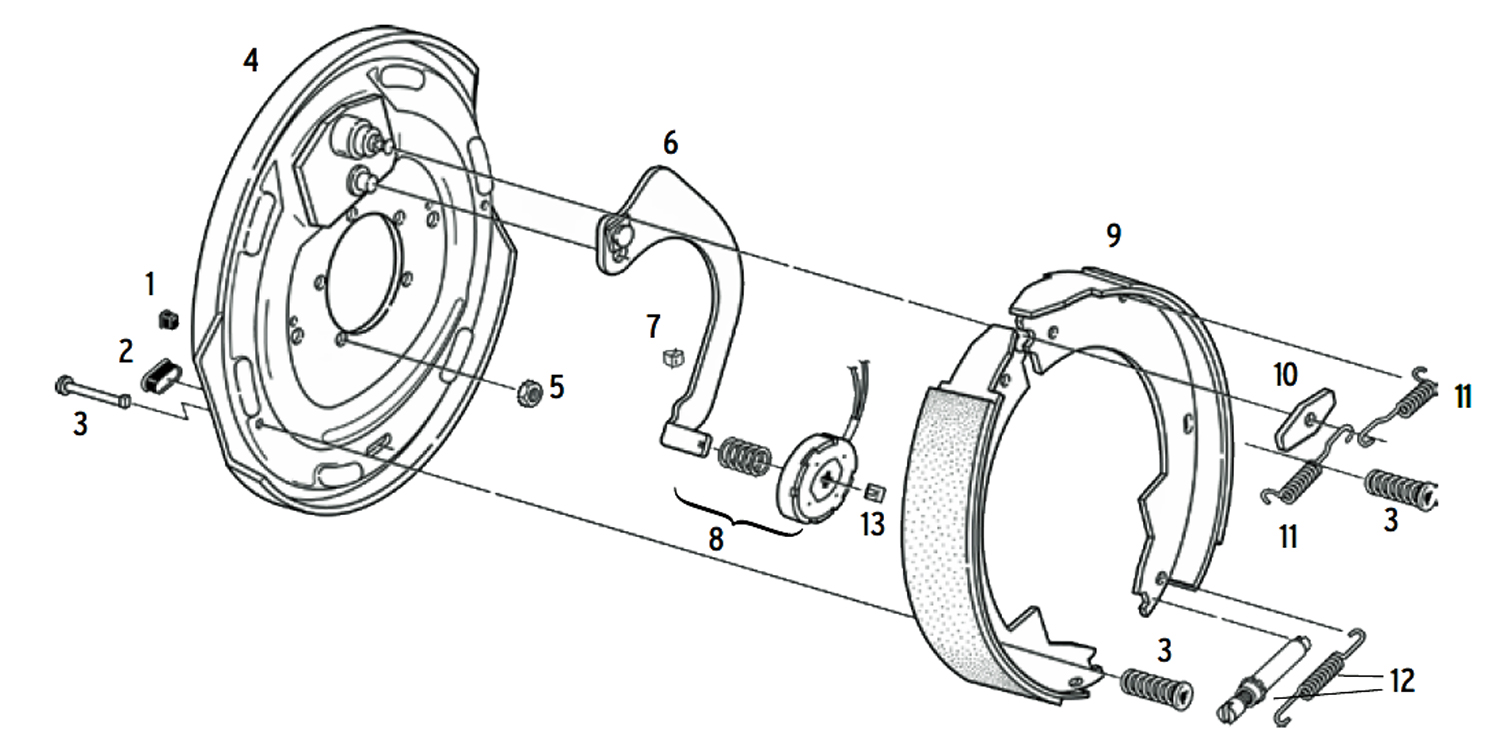

PART NO.
REF. NO.
DESCRIPTION
ITEM
D046-016-00
Wire grommet
1
BP10-220
Adjuster Dust Plug, Pkg of 4
2
BP06-090
Shoe Hold Down Spring Kit (1 Wheel)
3
6-193
Brake mounting nut
5
BP02-224
Al-Ko Actuating Arm, Left Hand
6
BP02-228
Al-Ko Actuating Arm, Right Hand
6
BP02-230
Dexter/Redline/Trailer Parts Pro/Red Onyx Actuating Arm, Left Hand
6
BP02-240
Dexter/Redline/Trailer Parts Pro/Red Onyx Actuating Arm, Right Hand
6
D027-005-00
Magnet wire clip
7

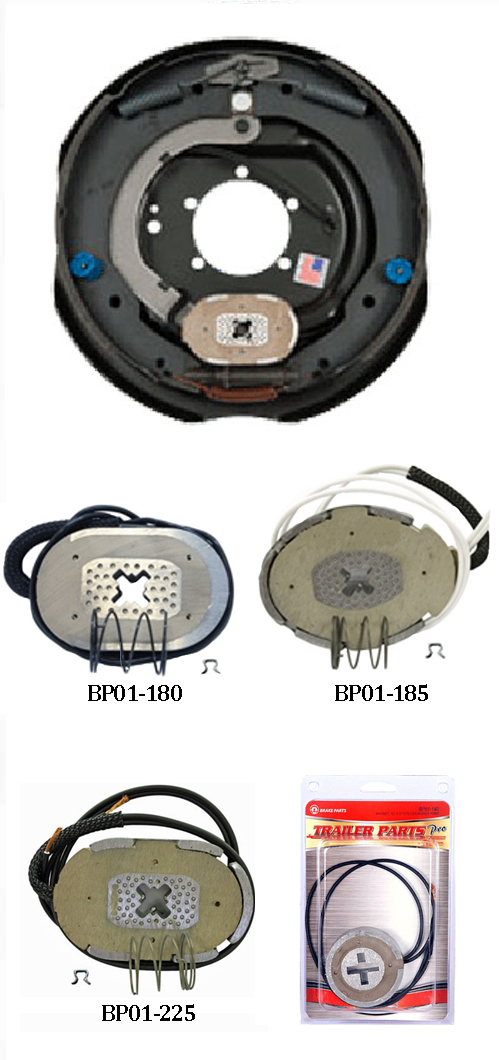

BP01-180
Magnet Kit, 6K-7K, Dexter/Redline/Trailer Parts Pro/Red Onyx and Al-Ko
8
BP01-185
Magnet Kit, Dexter 6K (White Wire - Oblong) New Style
8
BP01-225
Magnet Kit, Dexter 7K (Black Wire)
8
BP04-165
Shoe/Lining, Fits 6K-7K Dexter/Redline/Trailer Parts Pro/Red Onyx
9
BP04-185
Shoe/Lining Al-Ko/Hayes
9
005-067-00
236507
Anchor Post Washer Discontinued Reference Only
10
BP07-105
Shoe Return Spring (Dual) 2 Piece
11
BP10-065
Adjuster and spring
12
BP19-001
Magnet Retainer Clip for Oval Magnet, Pkg of 4
13
BP01-140
Magnet 12" X 2" Dexter MH Round
N/S
BP07-150
Shoe Return Spring, Single Spring Dexter, Hayes/ALKO
NS
