PART NO.
REF. NO.
DESCRIPTION
ITEM
K23-458-00
Dexter Nev-R-Adjust™ complete brake assembly 6K Per Pair Capacity Left Hand
K23-459-00
Dexter Nev-R-Adjust™ complete brake assembly 6K Per Pair Capacity Right Hand
K23-464-00
Dexter Nev-R-Adjust™ complete brake assembly 7K Capacity Left Hand
K23-465-00
Dexter Nev-R-Adjust™ complete brake assembly 7K Capacity Right Hand
23-458
183100
Dexter Nev-R-Adjust™ complete brake assembly 6K Per Pair Capacity Left Hand Reference Only New P/N Above
23-459
183150
Dexter Nev-R-Adjust™ complete brake assembly 6K Per Pair Capacity Right Hand Reference Only New P/N Above
23-464
184625
Dexter Nev-R-Adjust™ complete brake assembly 7K Capacity Left Hand Reference Only New P/N Above
23-465
184650
Dexter Nev-R-Adjust™ complete brake assembly 7K Capacity Right Hand Reference Only New P/N Above
EB01-127
Trailer Parts Pro complete brake assembly self-adjust 6-7k per pair capacity left hand
EB01-128
Trailer Parts Pro complete brake assembly self-adjust 6-7k per pair capacity right hand
BE12-70LSA
Trailer Parts Pro complete brake assembly self-adjust 6-7k per pair capacity left hand Bulk
BE12-70RSA
Trailer Parts Pro complete brake assembly self-adjust 6-7k per pair capacity right hand Bulk

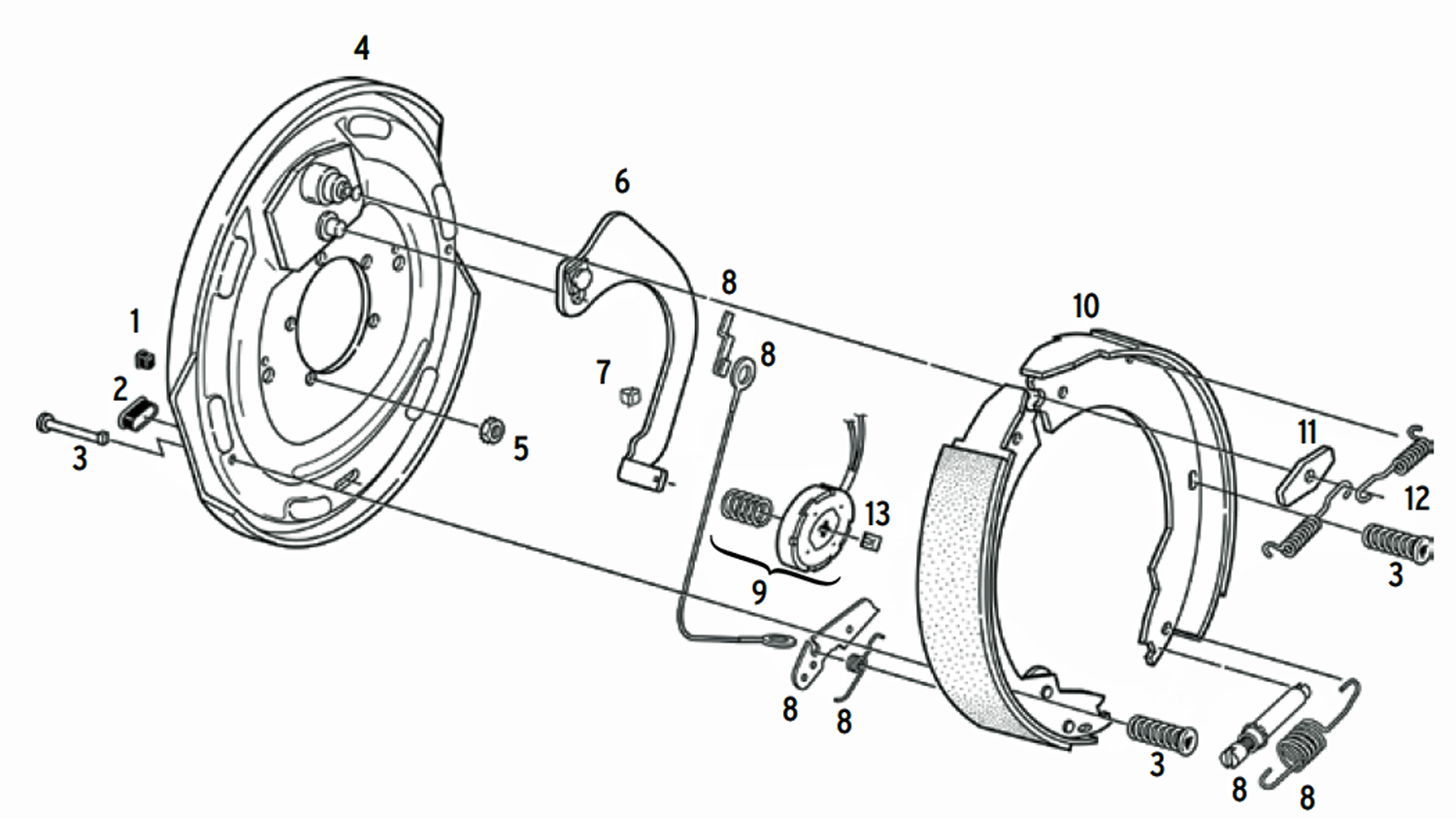

PART NO.
REF. NO.
DESCRIPTION
ITEM
046-016-00
Wire grommet
1
BP10-220
Adjuster Dust Plug, Pkg of 4
2
BP06-090
Shoe Hold Down Spring Kit (1 Wheel)
3
6-193
Brake mounting nut
5
BP02-230
Dexter/Redline/Trailer Parts Pro/Red Onyx Actuating Arm, Left Hand
6
D027-005-00
Magnet wire clip
7
K71-679
Adjuster Kit, Dexter Nev-R-Adjust™ (1 wheel)
8

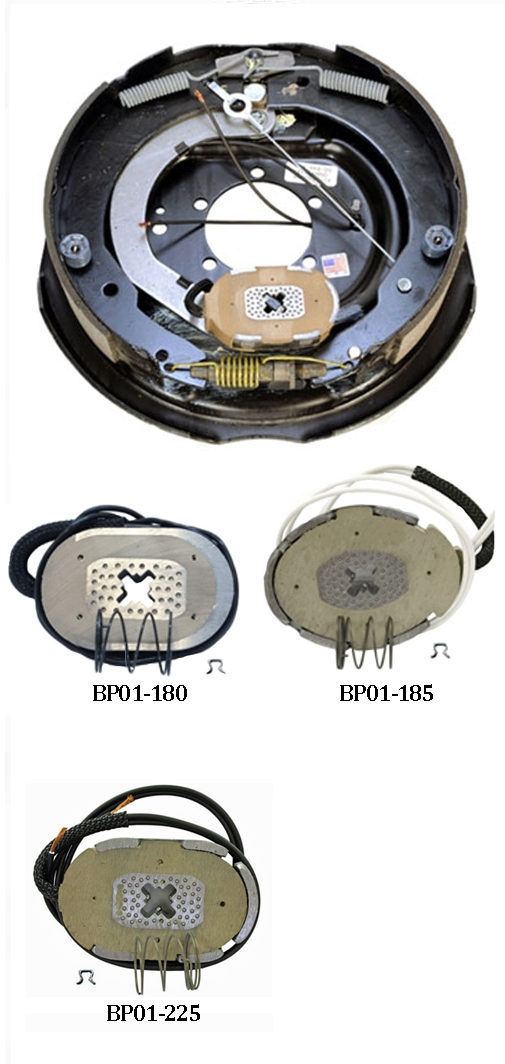

BP01-180
Magnet Kit, 6K-7K, Dexter/Redline/Trailer Parts Pro/Red Onyx and Al-Ko
8
BP01-185
Magnet Kit, Dexter 6K (White Wire - Oblong) New Style
8
BP01-225
Magnet Kit, Dexter 7K (Black Wire)
8
BP04-171
Shoe/Lining, 6/7K Dexter/Redline/Trailer Parts Pro/Red Onyx left hand
10
BP04-172
Shoe/Lining, 6/7K Dexter/Redline/Trailer Parts Pro/Red Onyx right hand
10
D005-067-00
236507
Anchor Post Washer Discontinued Reference Only
11
BP07-105
Shoe Return Spring (Dual) 2 Piece
12
BP19-001
Magnet Retainer Clip for Oval Magnet, Pkg of 4
13
BP07-150
Shoe Return Spring, Single Spring Dexter, Hayes/ALKO
NS
