PART NO.
REF. NO.
DESCRIPTION
ITEM

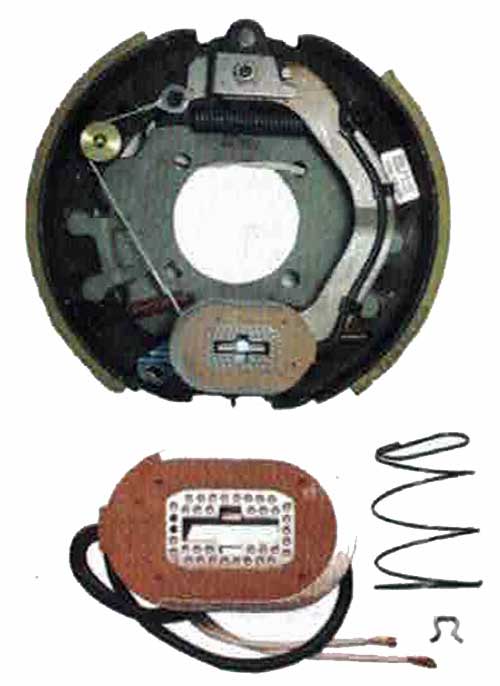

24-434
Dexter 4 Bolt complete brake assembly left hand
23-435
Dexter 4 Bolt complete brake assembly right hand
EB01-130
Trailer Parts Pro 4 Bolt complete brake assembly left hand
EB01-135
Trailer Parts Pro 4 Bolt complete brake assembly right hand

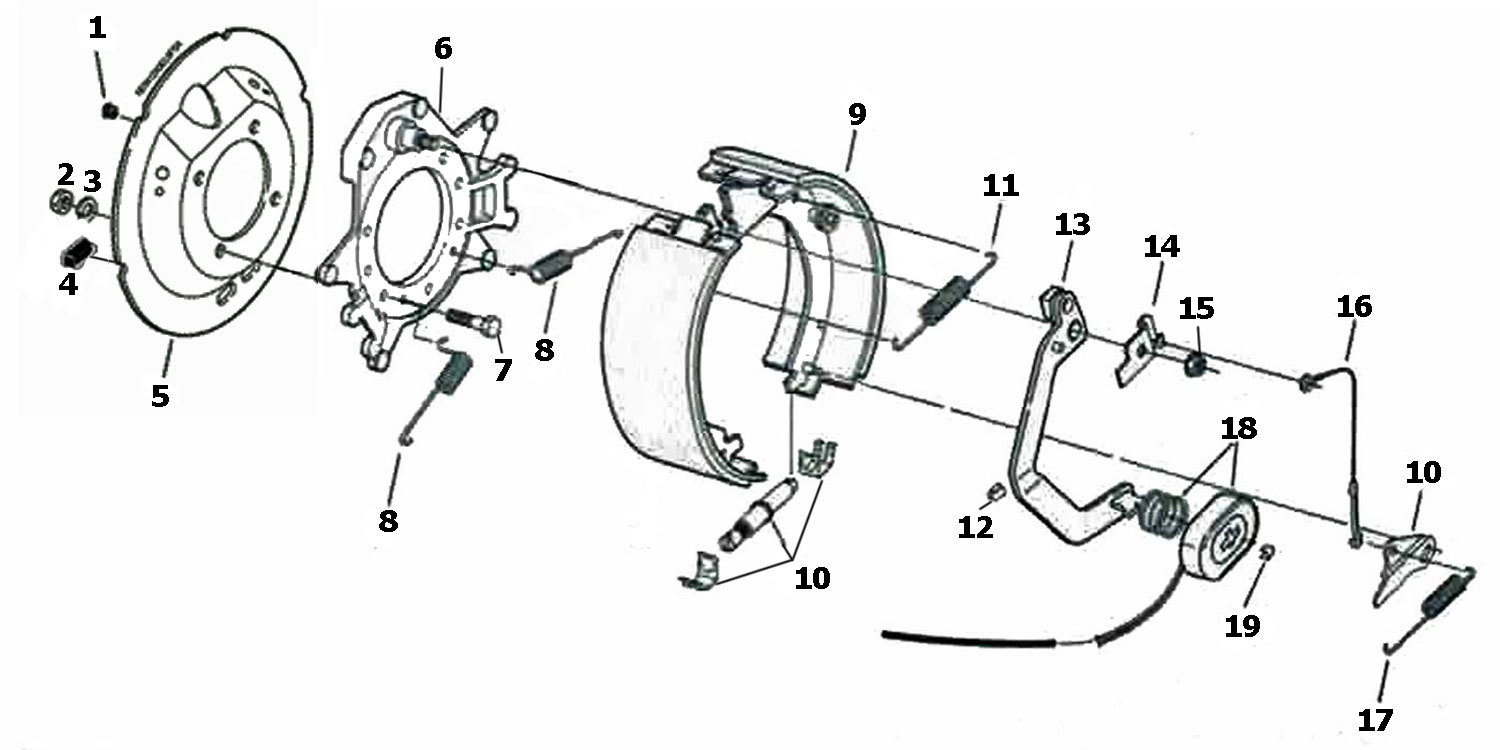

PART NO.
REF. NO.
DESCRIPTION
ITEM
046-016-00
Wire grommet
1
6-46
Brake mounting nut
2
5-8
7/16" brake mounting lock washer
3
BP10-220
Adjuster Slot Plug Package of 4
4
BP15-015
Dust shield metal
5
7-97
1/2"-20 brake mounting bolt
7
BP07-195
Shoe centering spring
8
BP04-245
Shoe & Lining (One Wheel) Left Hand After May 2000
9
BP04-255
Shoe & Lining (One Wheel) Right Hand After May 2000
9
BP10-136
Adjuster, lever & clips, left hand
10
BP10-146
Adjuster, lever & clips right hand
10
BP07-190
Shoe Return Spring
11
27-39
Magnet wire clip
12
BP02-327
Actuating Arm, Left Hand For Forward Adjust
13
BP02-328
Actuating Arm, Right Hand For Forward Adjust
13
215200
Actuating Arm Retainer, Left Hand Reference Only
14
215400
Actuating Arm Retainer, Right Hand Reference Only
14
71-455-1
Actuating Arm/Shoe Retainer, Left Hand
14
71-455-2
Actuating Arm/Shoe Retainer, Right Hand
14
6-92
7/16"-20 Flange locking nut
15
BP13-022
Adjuster Cable
16
BP08-155
Adjuster Spring
17
BP01-265
Magnet Kit 8,000 Lb. Oval (White Wire)
18
BP19-005
Magnet Retainer Clip, Pkg of 4
19
