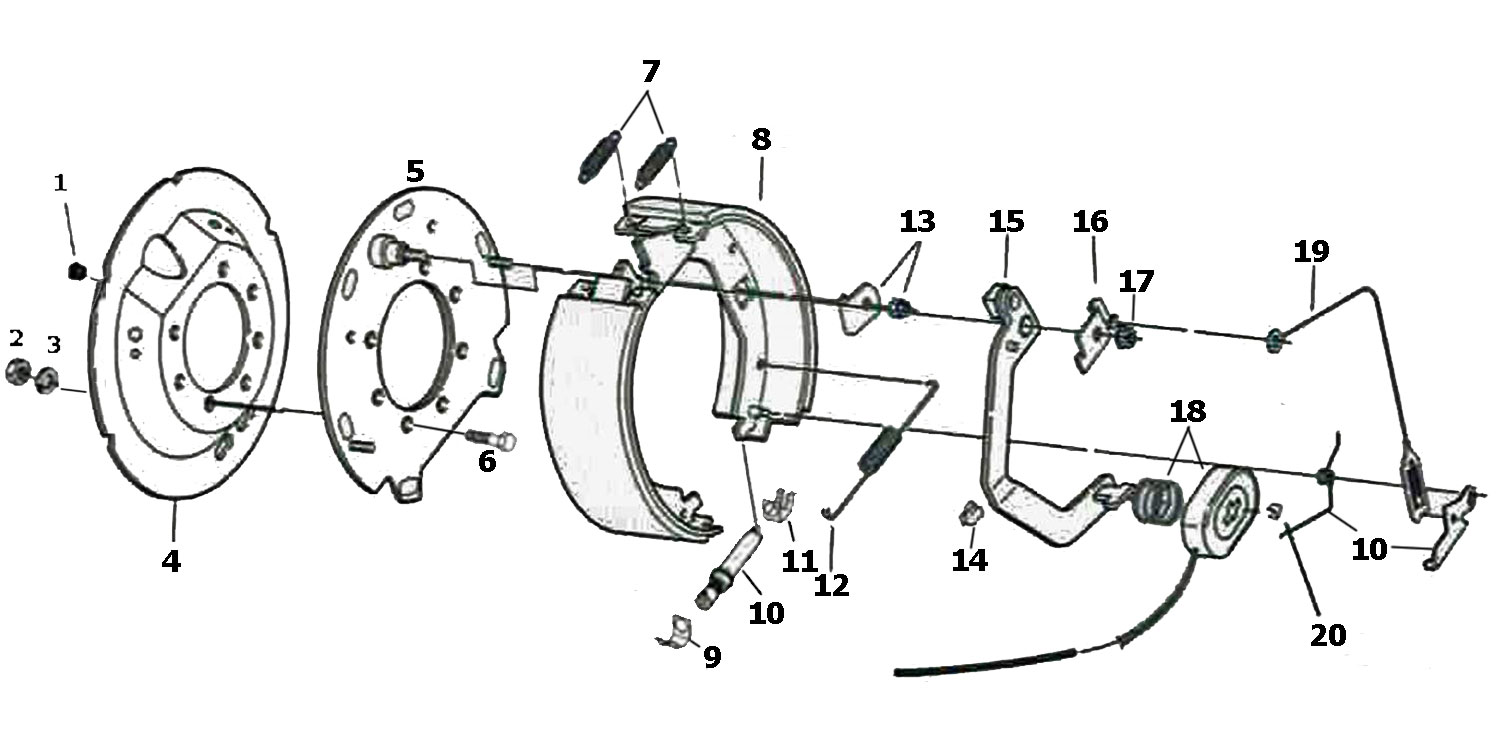

PART NO.
REF. NO.
DESCRIPTION
ITEM
046-016-00
Wire grommet
1
6-17
7/16" brake mounting nut
2
5-8
7/16" brake mounting lock washer
3
BP15-085
Brake Dust Shield Metal (1-Piece) for 7 Bolt
4
7-116
7/16"-20 brake mounting bolt
6
BP07-225
Shoe Return Spring Set (one Each Green & Black)
7
BP04-240
Shoe & Lining (One Wheel) Left Hand
8
BP04-250
Shoe & Lining (One Wheel) Right Hand
8
46-132
Adjuster clip - thread end
9
BP10-135
Adjuster, Lever & Spring, Left Hand
10
BP10-145
Adjuster, Lever & Spring, Right Hand
10
46-133
Adjuster clip - barrel end
11
BP08-150
Adjuster Spring
12
BP06-240
Shoe Hold Down Kit (One Wheel)
13
27-39
Magnet wire clip
14
BP02-315
Actuating Arm, Left Hand Non Forward Adjust
15
BP02-325
Actuating Arm, Right Hand Non Forward Adjust
15
BP02-327
Actuating Arm, Left Hand For Forward Adjust
15
BP02-328
Actuating Arm, Right Hand For Forward Adjust
15
215200
Actuating Arm Retainer, Left Hand Reference Only
16
215400
Actuating Arm Retainer, Right Hand Reference Only
16
71-455-1
Arm/Shoe Retainer, Left Hand
16
71-455-2
Arm/Shoe Retainer, Right Hand
16
6-92
7/16"-20 Flange locking nut
17
BP01-330

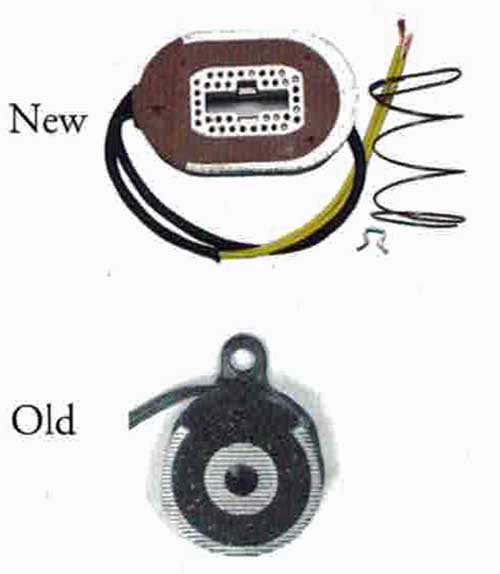

Magnet Kit 8,000 Lb. Oval (Red/Black Wire) after 7/1/2017
17
BP01-301
197410
Magnet Kit, 9-10K Oval (Yellow Wire) Reference Only New P/N Above
18
BP13-020
Adjuster Cable
19
BP19-005
Magnet Retainer Clip, Pkg of 4
20
