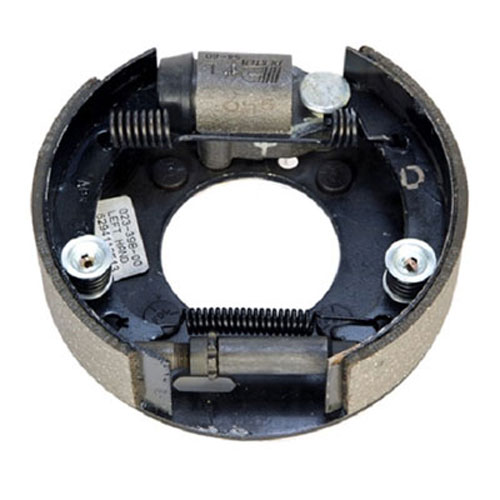

Dexter 7 x 1 3/4" Hydraulic Brake
- Capacity: 2,500 lbs. per pair
- Uni-Servo
PART NO.
REF. NO.
DESCRIPTION
ITEM
K23-398-00
Dexter complete brake assembly left hand 2.2k
K23-399-00
Dexter complete brake assembly right hand 2.2k
23-398
174010
Dexter complete brake assembly left hand Reference Only New P/N Above
23-399
174210
Dexter complete brake assembly right hand Reference Only New P/N Above
HB01-070
Trailer Parts Pro complete brake assembly left hand 2.5k
HB01-075
Trailer Parts Pro complete brake assembly right hand 2.5k

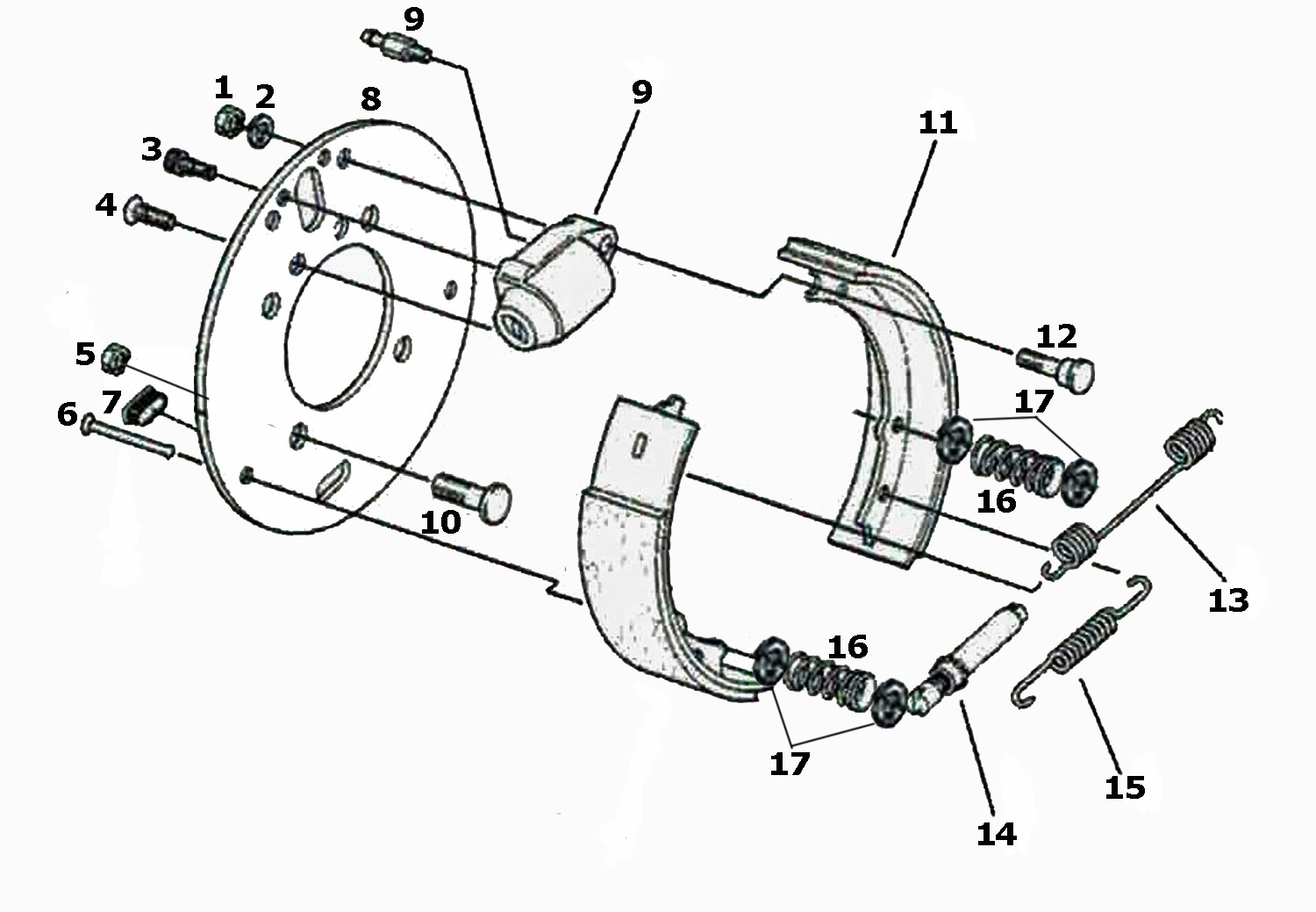

PART NO.
REF. NO.
DESCRIPTION
ITEM
7-234
235030
Socket head cap screw Discontinued Reference Only
3
7-235
235031
Counter sunk cap screw Discontinued Reference Only
4
6-17
7/16" Brake mounting hex nut
5
49-14
211501
Shoe Hold Down Pin Discontinued Reference Only
6
BP10-220
Adjuster Dust Plug, Pkg of 4
7
36-38
235032
Backing plate Discontinued Reference Only
8
54-80-3
Wheel Cylinder Left Hand
9
54-80-4
Wheel Cylinder Right Hand
9
D007-041-00
7/16"-20 Press-in brake mounting stud
10
BP04-050
Shoe/Lining (One Wheel)
11
38-72
235033
Anchor post Discontinued Reference Only
12
46-126
Shoe Return Spring
13
219700
Adjuster Spring Discontinued Reference Only
15
219800
Adjuster Spring Discontinued Reference Only
15
46-127
Adjuster spring
15
211500
Shoe Hold Down Spring (1 Wheel) Discontinued Reference Only
16
46-6
Shoe hold down spring
16
35-1
Cup for shoe hold down spring
17
