MARINE 2,200-3500 LB AXLE SPECIFICATIONS
Suspension:
Leaf Spring Suspension
Double Eye versions
Slipper Eye Versions
(Spring Kits sold separately)
Bolt Pattern Options:
5 on 4 1/2", Gal-Dex™ Marine hubs and hubs/drum
Brake Options:
10 X 2 1/4" Hydraulic freebacking, corrosion resistant (M35 series only)
Optional brake flange (M22 Series)
Standard brake flange (M35 Series idler) for disc brake retrofit
Spindles:
M22 Series: Straight BTR Spindle, 1 1/16", uses L44649 Inner and Outer bearings
M35 Series: Straight TT H (#84) Spindle, uses L68149 Inner and L44649 Outer bearing
Stainless Steel Wear Sleeves on Galvanized Axles
Tubing:
2" OD Square, Galvanized
V-Bend Option
Lubrication:
E-Z Lube®

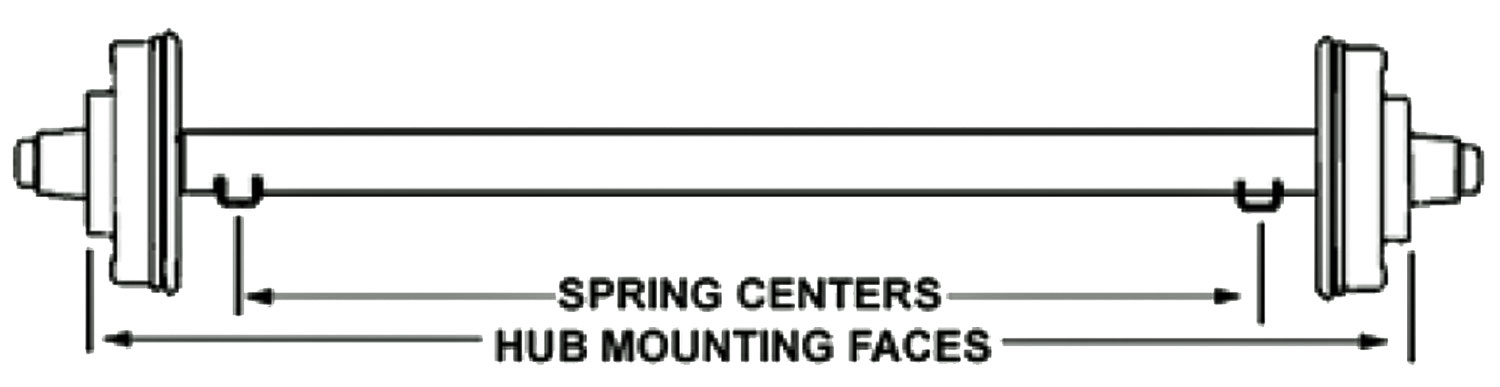

Overhang Restrictions
SPINDLE
HUB TYPE
MINIMUM
MAXIMUM
Straight (M22)
Idler/Drum
13"
18"
Straight (M35)
Idler/Drum
12.38"
18"
Straight (M35)
Disc
15"
18"
NOTE: Minimums are based on manufacturing tolerances only. Some tire and wheel combinations may create interference.
