Double Eye Springs

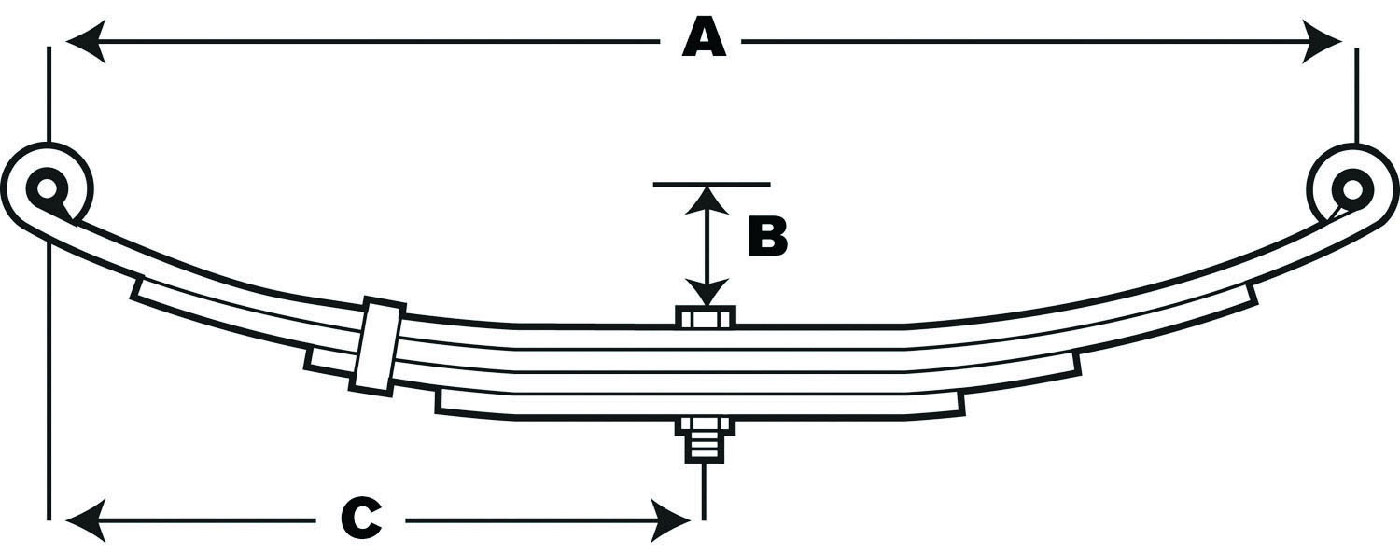

When replacing worn or broken springs, be sure to measure the old spring as noted in the diagram. Your worn spring will be longer than a new spring due to wear.
PART#
REF #
LEAF
CAP
A
B
C
WIDTH
EYE
065000
3
1k
20 3/8
3 3/8
10 3/16
1.75
9/16
065020
3
1500
20
3 1/2
10
1.75
9/16
065200
3
1750
23 1/4
3 1/2
11 1/2
1.75
9/16
065420
3
1250
25 1/4
3
12/58
1.75
9/16
065600
3
1750
25 1/4
3
12 5/8
1.75
9/16
065700
3
2000
25 1/4
3
12 5/8
1.75
9/16
065800
4
1750
25 1/4
3
12 5/8
1.75
9/16
066000
4
2400
25 1/4
3
12 5/8
1.75
9/16
066200
5
2900
25 1/4
3
12 5/8
1.75
9/16
066400
6
3300
24 7/8
3
12 5/8
1.75
9/16
066600
1
3000
25 1/4
3
12 5/8
1.75
9/16
066800
4
1500
27
2 3/4
12 1/2
1.75
9/16
067000
6
2250
26
3/34
13
1.75
9/16
NOTE: Dimensions shown above are for identification purposes only. Allow for slight variances in dimensions, due to spring manufacturing tolerances. "Replacement In Pairs" is recommended for proper axle alignment and suspension performance.
