Hayes 12 x 2" Electric Brake
- Capacity: 7,000 lbs. per pair

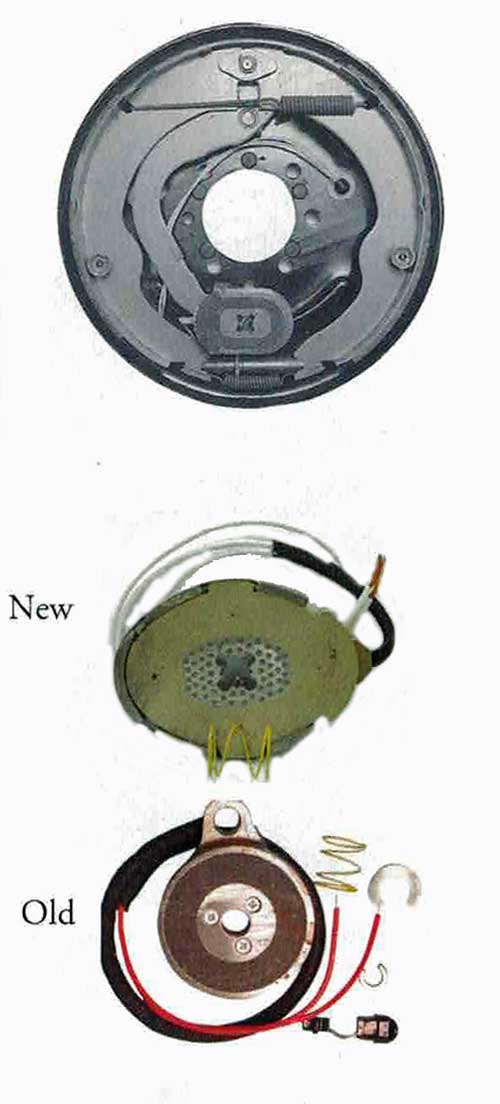

- In late 1987, brake was redesigned to use oval style magnet, replacing round magnet.
- Brake assemblies no longer available replaced by 23-180 & 23-181.

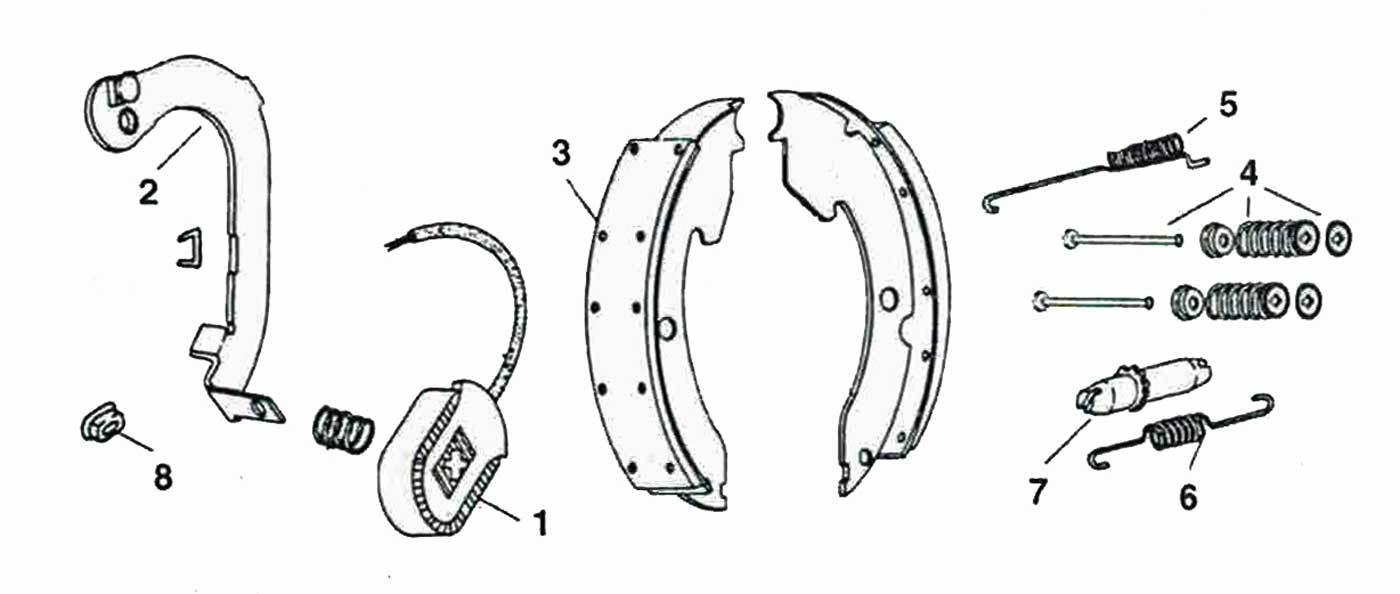

PART NO.
REF. NO.
DESCRIPTION
ITEM
K23-537-00
185155
Hayes/ALKO complete brake assembly left hand Reference Only Replace by 23-180
K23-536-00
185160
Hayes/ALKO complete brake assembly right hand Reference Only Replace by 23-180
PART NO.
REF. NO.
DESCRIPTION
ITEM
BP01-160
194600
Magnet Kit, Round (Old Style 5.2K) Discontinued Reference Only
1
BP01-180
Magnet Kit, Oval (New Style)
1
BP02-224
Left Hand Actuating Arm (New Style)
2
BP02-228
Right Hand Actuating Arm (New Style)
2
BP04-185
Shoe/Lining Hayes/ALKO (One Wheel)
3
BP06-090
Shoe Hold Down Spring
4
BP07-150
Shoe Return Spring,Single Spring Dexter and Hayes/ALKO
5
BP08-070
Adjuster Spring Electric
6
BP10-060
Adjuster Electric
7
BP10-220
Adjuster Dust Plug, Pkg of 4
8
BP19-001
Magnet Retainer Clip for Oval Magnet, Pkg of 4
9
