Rockwell Trailer Hub-Drum 8 Bolt On 6 1/2" Bolt Circle
  • 28580 Inner/25580 outer bearings
  • Fits Rockwell 10,000 lb. axles
  • Oil Bath
  • 5/8" studs with flange nuts
  • 12 1/4" X 3 3/8" Drum

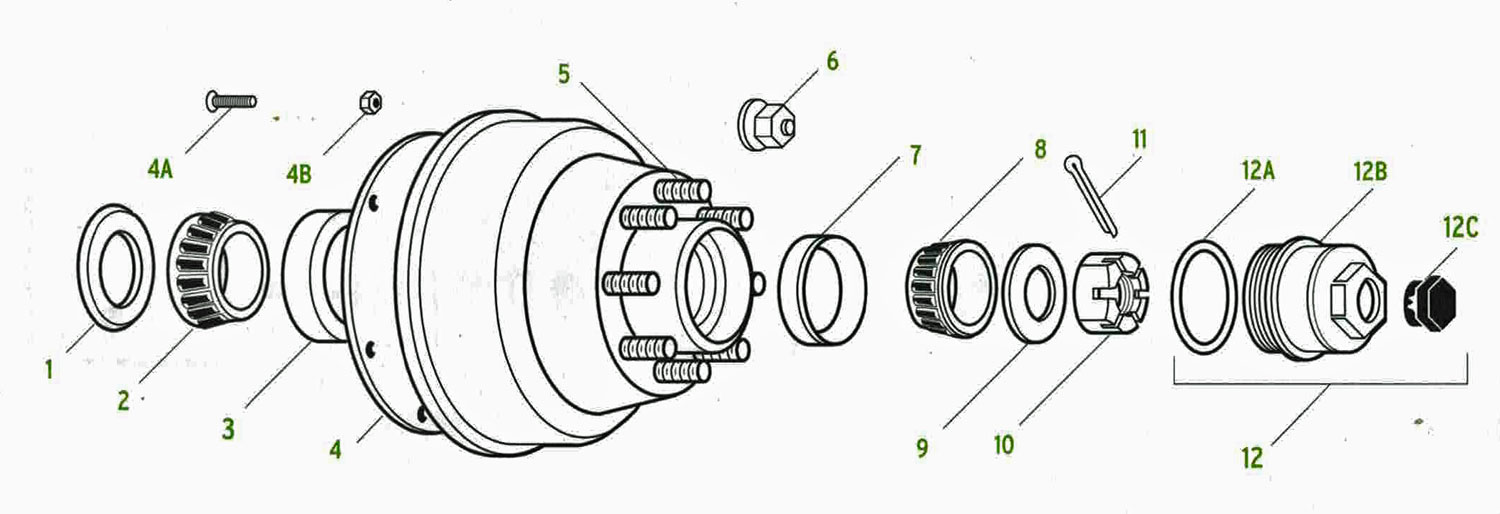

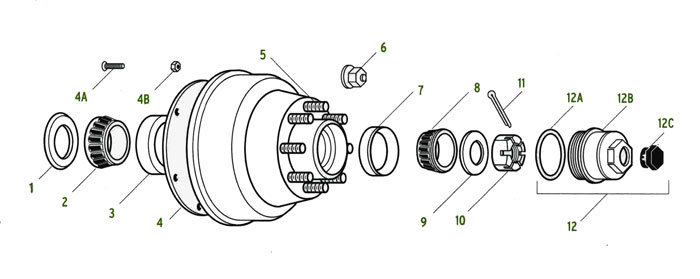

Rockwell Hub-Drum trailer 8 bolt on 6 1/2 inch Parts Illustration
HUB-DRUM ASSEMBLIES
PART NO.
REF. NO.
DESCRIPTION
LUB.
STUD
Pilot Dia
99865-1P475AB
Rockwell oil bath hub-drum with studs and races
Oil Bath
5/8"
4.75"
99865-1PAB
Rockwell oil bath hub-drum with studs and races
Oil Bath
5/8"
4.88"
REPLACEMENT PARTS
PART NO.
REF. NO.
DESCRIPTION
ITEM
CR27438 (91030)
Oil Seal, 2.75x3.78" 99 spindle unitized
1
28580
Inner Bearing
2
28521
Inner Race
3
10KARM120
Electric Brake Dis-Plate Armature
4
10KARM120
Electric Brake Dis-Plate Armature Flathead screw
4A
14LN
Electric Brake Dis-Plate Armature locknut
4B
4738-28
5/8"-18 X 2 3/4" drive-in wheel stud
5
6-209
Wheel Nut, 5/8" Swivel Flange Style
6
25520
Outer Race
7
25580
Outer Bearing
8
D005-224-00
Spindle washer, Plain
9
90623
Spindle Nut, 1 1/2"" Castellation
10
CP-3
Cotter Pin
11
12011-1
Complete Oil Cap Assembly
12
V75340
Replacement oil cap o-ring
12A
1201G
Replacement grease cap
12B
12011
Replacement oil cap
12B
RP-200
Rubber plug oil cap
12C
