Trailer Hub-Drum 4 Bolt On 4" Bolt Circle BTR Spindle
- BTR 1 1/16" spindle L44649 inner/outer bearings
- Fits Dexter, Lippert and Most other 2,200 lb. axles
- Standard grease or zerk-lubed spindles
- 7" X 1 1/4" Drum
PART NO.
REF. NO.
DESCRIPTION
BRAKE
FINISH
8-173-16
Dexter hub-drum only with studs and races
7" X 1 1/4" Electric
Painted
8-173-16UC3
Dexter complete hub-drum assembly
7" X 1 1/4" Electric
Painted
8-173-16UC3-EZ
Dexter complete EZ-Lube hub-drum assembly
7" X 1 1/4" Electric
Painted
8-276-5
Dexter hub-drum only with studs and races
7" X 1 1/4" Hydraulic
Painted
8-276-5UC3
Dexter complete hub-drum assembly
7" X 1 1/4" Hydraulic
Painted
8-276-5UC3-EZ
Dexter complete EZ-Lube hub-drum assembly
7" X 1 1/4" Hydraulic
Painted

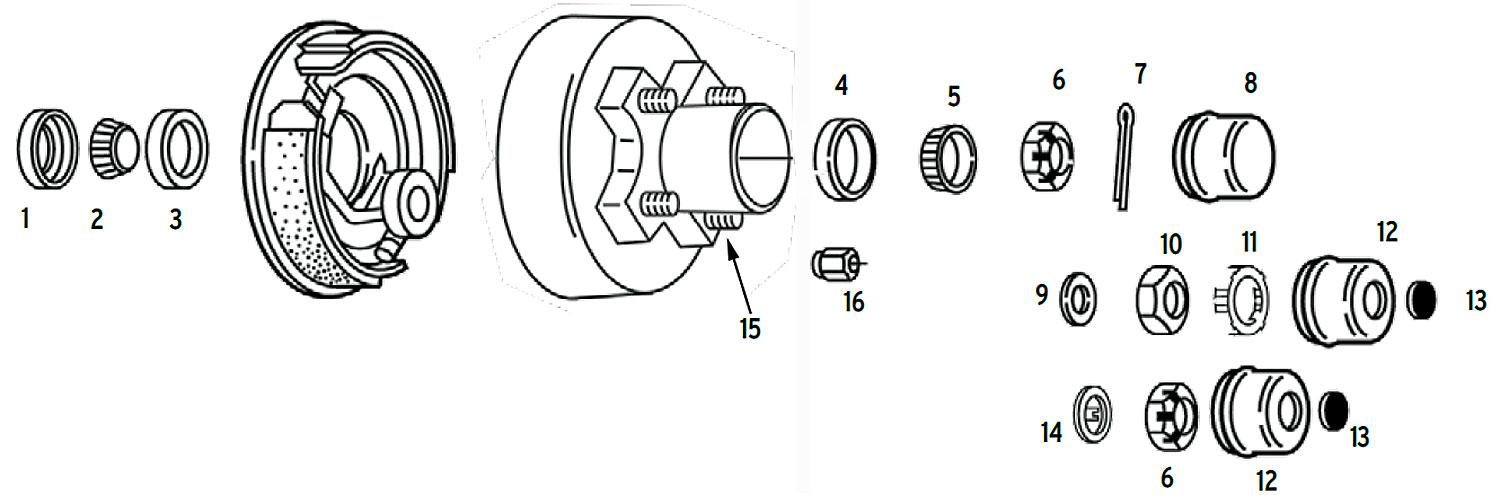

PART NO.
REF. NO.
DESCRIPTION
ITEM
10-60
Grease Seal, 1.987" OD X 1.5" ID, Double Lip
1
L44649
Inner/Outer Bearing
2 & 5
L44610
Inner/Outer Race
3 & 4
6-176
Spindle Nut, 1"-14 12 Castellation
6
165686
Spindle Nut, 1"-14 6 Castellation
6
46749
Grease Cap, 1.986" OD, Drive-In
8
5-23
Spindle washer, 1" D-Style (E-Z lube after 2002)
9
6-191
Spindle nut for 6-190 retainer (E-Z lube after 2002)
10
6-190
Spindle nut retainer for 6-191 retainer (E-Z lube after 2002)
11
21-41-1
Grease cap, 1.986" OD drive-in for EZ-Lube
12
85-1
Rubber plug for EZ-Lube grease cap
13
5-101
Spindle washer 1" tang-style (E-Z lube after 2002)
14
D09251510
Stud, 1/2" Diameter, Drive-In
15
D007-246-00
Stud, 1/2" Diameter, Drive-In
15
X1023R
Wheel Nut, 1/2" Cone Style
16
25-53
Stud 1/2" Diameter, Screw-In for older style idler hubs
NS
