Dexter Nev-R-Lube Trailer Hub/Drum 6 Bolt On 5 1/2" Bolt Circle 6k Axle
- Fits with Dexter 42mm Nev-R-Lube axles
- Capacity of 3,000 lbs. per each
- 12" X 2" drum
PART NO.
REF. NO.
DESCRIPTION
8-388-80
Dexter Nev-R-Lube hub/drum only with bearing and retainer
8-388-80UC3
Dexter Nev-R-Lube complete hub/drum assembly

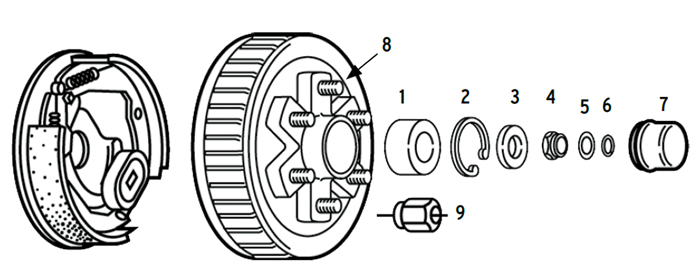

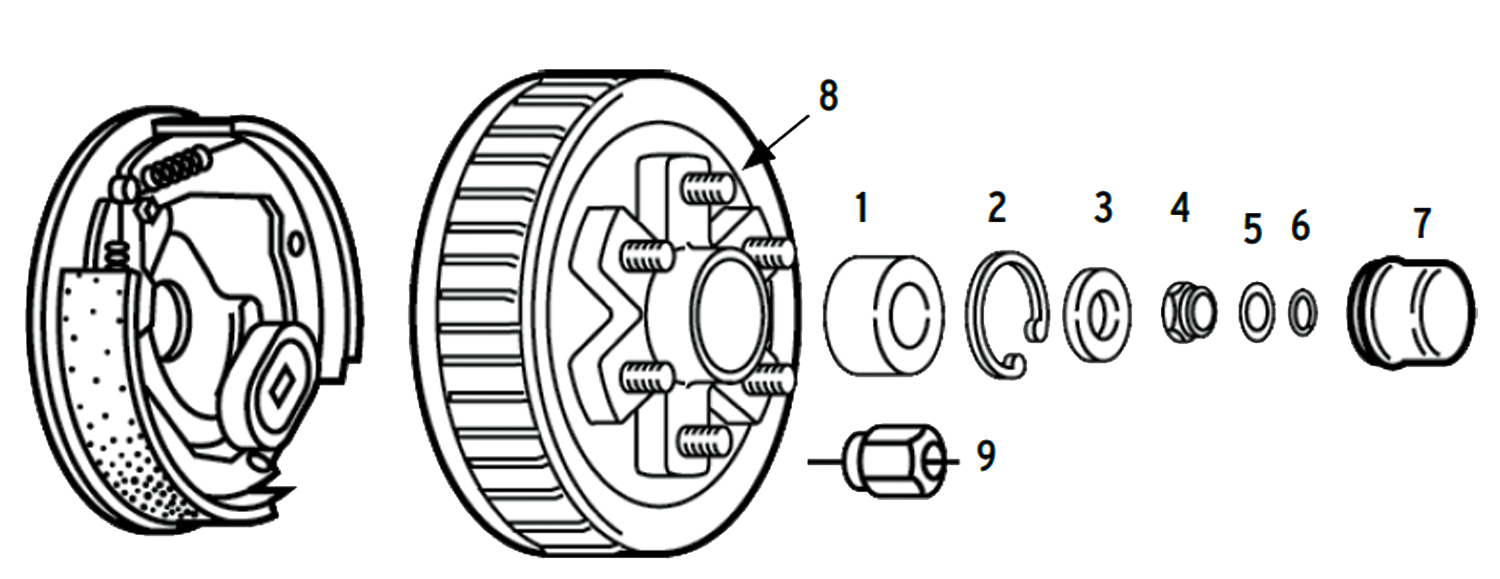

PART NO.
REF. NO.
DESCRIPTION
ITEM
31-73-3
Bearing cartridge (42mm x 76mm x 39mm)
1
69-95
Snap Ring Inner Bearing Retainer 3" OD
2
5-147-1
Spindle Washer 1" OD
3
6-183
Spindle Nut, 1"-14 Self-Locking
4
92-2
Torque Information Disc
5
69-96
Snap Ring Outer Retainer .821" OD
6
1609
Grease Cap, 3.125" OD, Dome Style
7
7-122
Stud, 1/2" Diameter, Drive-In Style 2" Long Standard
8
165995
Stud, 1/2" Diameter, Drive-In Style 2 1/2" Long
8
7-262
Stud, 1/2" Diameter, Drive-In Style 2.7" Long
8
X1023R
Wheel Nut, 1/2" Cone Style
15
