Trailer Hub-Drum 8 Bolt On 6 1/2" Bolt Circle Dexter 10k Axles
- 395S inner/387A outer bearings
- Fits Dexter 10k axles
- Capacity 5,000 lbs. per each
- 2-pc hub/drum
- 12 1/4" X 4" drum
- Available with ABS exciter ring installed
- Hub Pilot 4.75"
PART NO.
REF. NO.
DESCRIPTION
LUB.
8-214-5
Dexter 2 piece hub-drum, hub with studs and races
Oil Bath
8-214-5UC1
Dexter 2 piece hub-drum, complete hub assembly
Oil Bath
D008-214-25
Dexter 2 piece hub-drum, hub with studs and races and bolt on cap
Oil Bath
9-27-1
Dexter drum Non-ABS
N/A
9-27-3
Dexter drum with ABS exciter ring
N/A

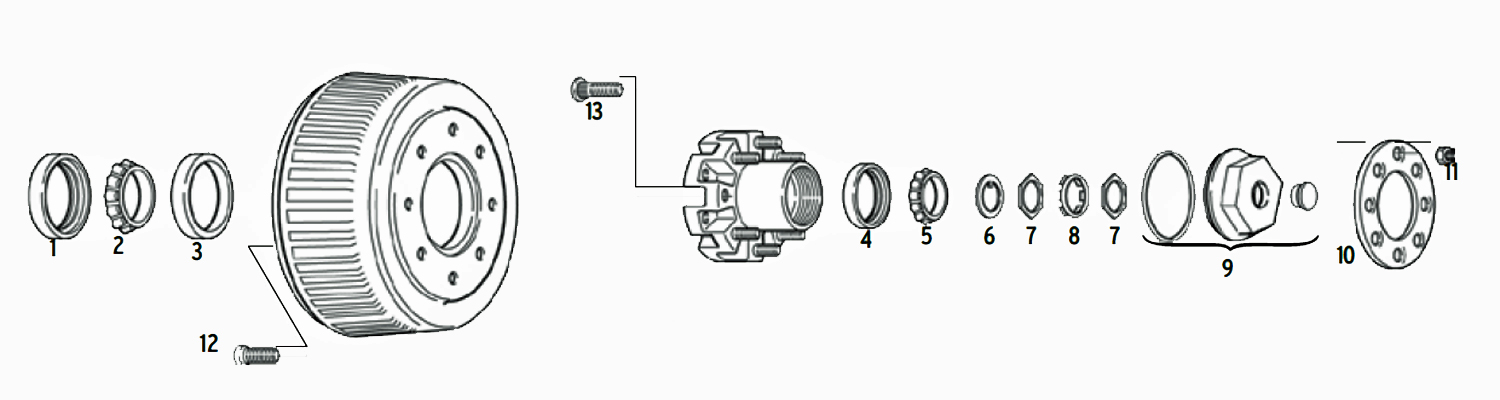

PART NO.
REF. NO.
DESCRIPTION
ITEM
10-56
Oil Seal, Unitized 3.125" ID x 4.50" OD
1
5-60
Spindle washer, Tongue Style
6
6-84
Spindle Nut, 1 3/4" ID Fine Thread
7
5-59
Spindle washer, Tang Style
8
RG04-270
Complete Oil Cap Kit
9
K21-259-00
Complete Aluminum Bolt-On Oil Cap Kit
9
K21-301-00
Complete Aluminum Threaded Oil Cap Kit
9
33-52-1
Wheel retaining ring
10
6-109
Wheel Nut, 5/8" Cone Style
11
7-244
Drum mounting bolt
12
7-115
Stud, 5/8" Diameter, Drive-In Style 2.75" long
16
