Trailer Hub-Drum 8 Bolt On 6 1/2" Bolt Circle Dexter 12k Axles
- 3984 inner/28682 outer bearings
- Fits Dexter 12k axles
- Capacity 6,000 lbs. per each
- 2-pc hub-drum
- 12 1/4" X 5" drum
- Available with ABS exciter ring installed
- Hub Pilot 4.75"
PART NO.
REF. NO.
DESCRIPTION
LUB.
8-214-8
Dexter 2 piece hub-drum hub with studs and races for 16 & 16.5" wheels
Oil Bath
8-214-8UC1
Dexter 2 piece hub-drum complete hub assembly for 16 & 16.5" wheels
Oil Bath
D008-214-28
Dexter 2 piece hub-drum hub with races and studs bolt on cap for 16 & 16.5" wheels
Oil Bath
D008-422-03
112802
Dexter 2 piece hub-drum hub with studs and races 14TF only
Oil Bath
D008-422-13
112804
Dexter 2 piece hub-drum hub with studs and races Bolt-On 14TF only
Oil Bath
9-28-1
Dexter 2 piece hug-drum Non-ABS drum
N/A
9-28-5
Dexter 2 piece hu-drum ABS drum
N/A

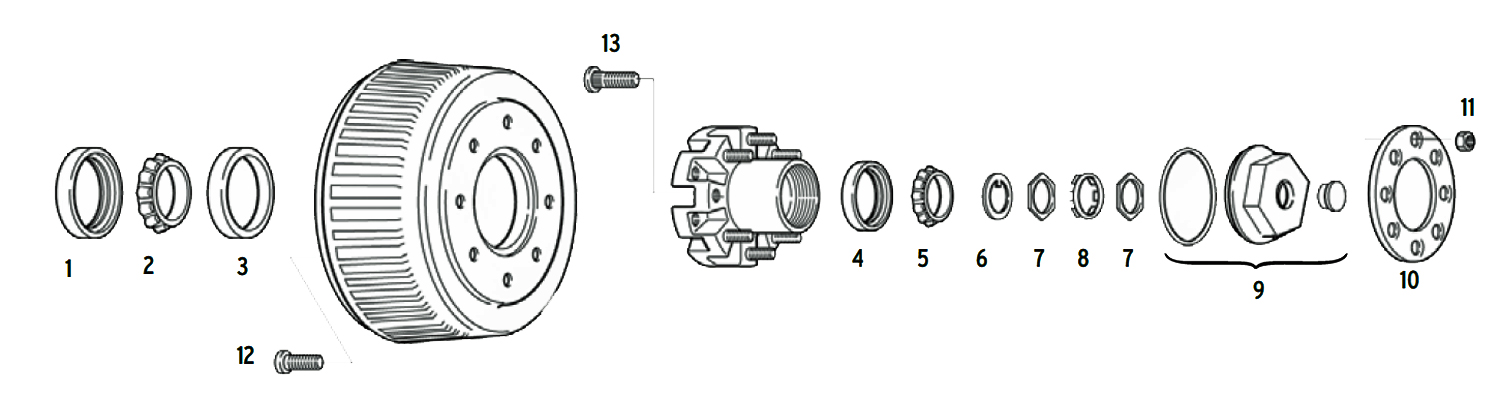

PART NO.
REF. NO.
DESCRIPTION
ITEM
10-56
Oil Seal, Unitized 3.125" ID x 4.50" OD
1
5-60
Spindle washer, Tongue Style
6
6-84
Spindle Nut, 1 3/4" ID Fine Thread
7
5-59
Spindle washer, Tang Style
8
RG04-270
Complete Oil Cap Kit
9
K21-259-00
Complete Aluminum Bolt-On Oil Cap Kit
9
K21-301-00
Complete Aluminum Threaded Oil Cap Kit
9
33-52-1
Wheel retaining ring
10
6-109
Wheel Nut, 5/8" Cone Style
11
7-244
Drum mounting bolt
12
7-115
Stud, 5/8" Diameter, Drive-In Style 2.75" long
13
