Trailer Hub-Drum 8 Bolt On 6 1/2" Bolt Circle Al-Ko/Hayes 10k Axles

28580 inner/25580 outer bearings
Fits Al-Ko/Hayes 10,000 lb. axles
12 1/4" X 3 1/2" drum
Hub pilot 4.88"

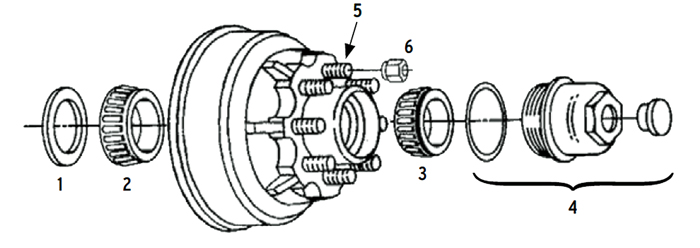

Trailer Al-Ko/Hayes 10k Axle Hub-Drum 8 bolt on 6 1/2 inch Parts Illustration

HUB-DRUM ASSEMBLIES

PART NO.

REF. NO.

DESCRIPTION

LUB.

9080568

Al-Ko/Hayes hub/drum only with studs and races DISCONTINUED

Oil

9080568UC3

Al-Ko/Hayes complete hub/drum assembly DISCONTINUED

Oil

REPLACEMENT PARTS

PART NO.

REF. NO.

DESCRIPTION

ITEM

91030

Oil Seal, Unitized 3.779" OD X 2.75" ID

1

28580

Inner Bearing

2

25580

Outer Bearing

3

RG04-250

Complete Oil Cap Kit

4

090737

Stud, 5/8" Diameter, Drive-In Style

5

95188

Wheel Nut, 5/8" Flanged

6

28521

Inner Race

NS

25520

Outer Race

NS
