Trailer Hub-Drum 8 Bolt On 6 1/2" Bolt Circle Al-Ko/Hayes 8k Axles

25580 inner/02745 outer bearings
Fits Al-Ko/Hayes 8,000 lb. axles
9/16" studs standare, 5/8" studs special order
12" X 3 3/8" drum

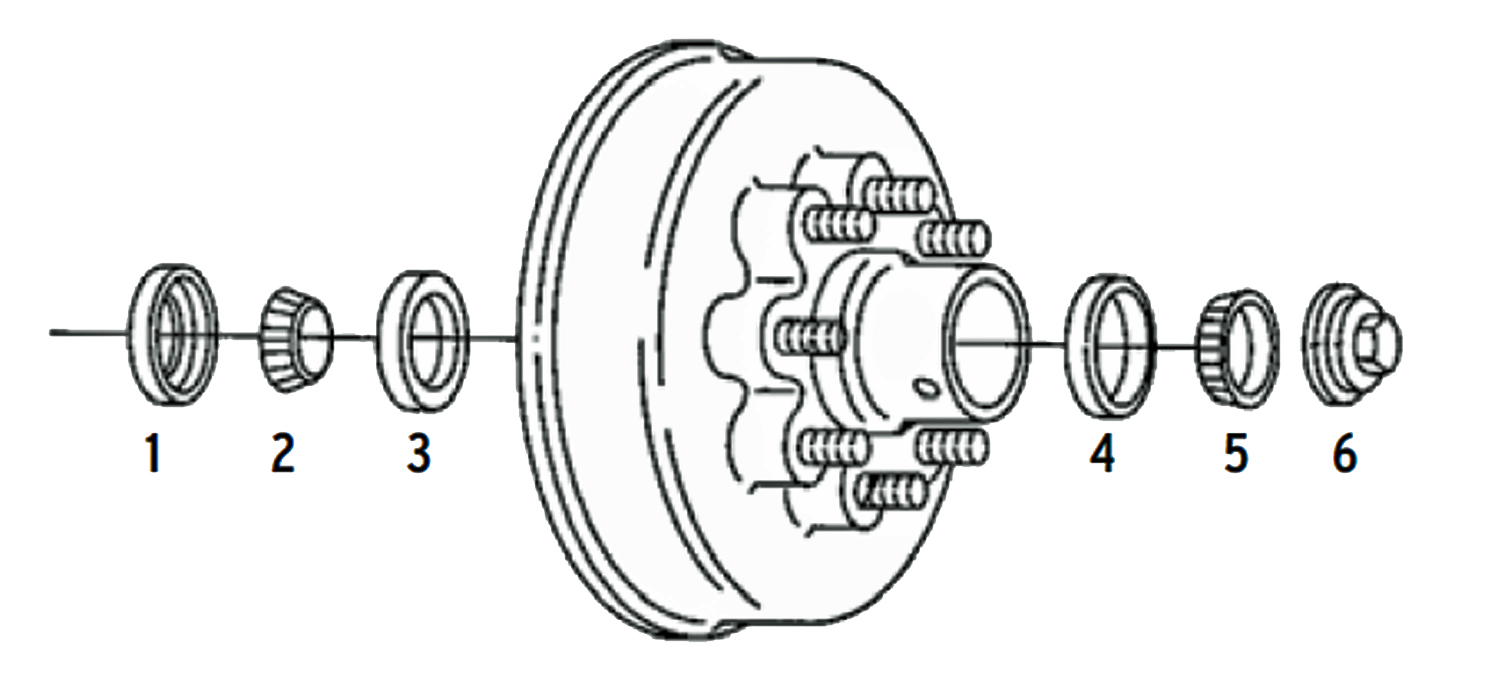

Al-Ko 8k Axle Hub-Drum 8 bolt on 6 1/2 inch Parts Illustration

HUB-DRUM ASSEMBLIES

PART NO.

REF. NO.

DESCRIPTION

LUB.

9080648

Al-Ko/Hayes hub/drum only with studs and races (Pre 1989) DISCONTINUED

Oil

9080648UC3

Al-Ko/Hayes complete hub/drum assembly DISCONTINUED

Oil

REPLACEMENT PARTS

PART NO.

REF. NO.

DESCRIPTION

ITEM

10-63

Oil Seal, Unitized 3.376” OD x 2.250” ID

1

25580

Inner Bearing

2

25520

Inner Race

3

02420

Outer Race

4

02475

Outer Bearing

5

RG04-290

150965

Complete Oil Cap Kit (Pre 01/97) Discontinued Reference Only

6

RG04-280

Complete Oil Cap Kit (After 01/97)

6

6-53

Wheel Nut, 9/16" Cone Style

NS

165686

Spindle Nut, 1"-14 6 Castellation

NS

165649

Cotter Pin

NS
