Nev-R-Lube Trailer Hub/Drum 8 Bolt On 6 1/2" Bolt Circle 7k Axles
- Fits with Dexter 50mm Nev-R-Lube axles
- Capacity of 3,500 lbs. per each
- 12" X 2" drum
- 1/2" stud standard (9/16" & 5/8" available)
PART NO.
REF. NO.
DESCRIPTION
STUD SIZE
8-385-81
Dexter Nev-R-Lube hub/drum only with bearing and retainer
9/16"
8-385-81UC3
Dexter Nev-R-Lube complete hub/drum assembly
9/16" Cone Nuts
8-385-82
Dexter Nev-R-Lube hub/drum only with bearing and retainer
1/2"
8-385-82UC3
Dexter Nev-R-Lube complete hub/drum assembly
1/2" Cone Nuts

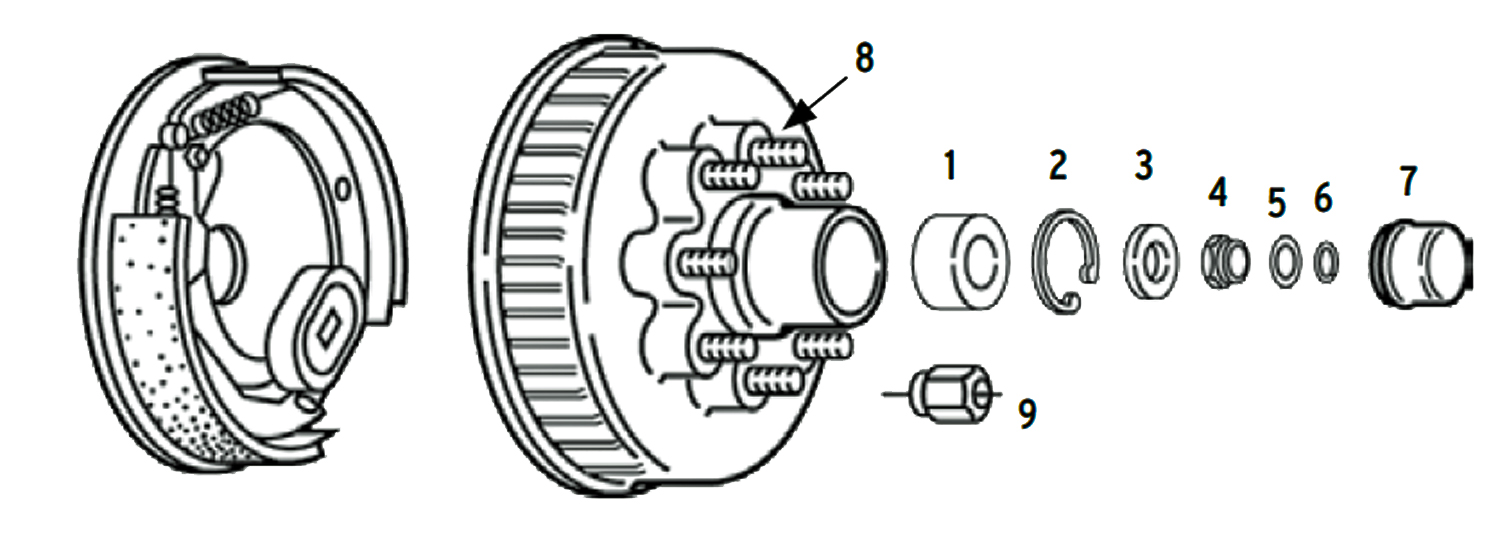

PART NO.
REF. NO.
DESCRIPTION
ITEM
31-71-3
Bearing Cartridge (50MM X 84mm x 54mm)
1
69-93
Snap Ring Inner Bearing Retainer 3.35" OD
2
5-149
Spindle Washer 1" ID
3
6-183
Spindle Nut, 1"-14 Self-Locking
4
92-2
Torque Information Disc
5
69-96
Snap Ring Outer Retainer .821" OD
6
75DC
Grease Cap 3.355" OD Standard
7
7-122
Stud, 1/2" Diameter, Drive-In Style 2" Long Standard
8
165995
Stud, 1/2" Diameter, Drive-In Style 2 1/2" Long
8
7-262
Stud, 1/2" Diameter, Drive-In Style 2.7" Long
8
7-223
Stud 9/16" Drive-in 2" Long
8
X1023R
Wheel Nut, 1/2" Cone Style
9
6-53
Wheel Nut, 9/16" Cone Style
9
