PART NO.
REF. NO.
DESCRIPTION
FINISH
K08-091-1G
Dexter hub assembly
Painted
34822
Dexter hub only with studs and races (BT8 or BTR)
Painted
8-91-05UC1
Dexter complete hub assembly with BT8 spindle
Painted
8-91-05UC1-EZ
Dexter complete EZ-Lube hub assembly with BT8 spindle
Painted
H34822
Trailer Parts Pro hub only with studs and races (BTR or BT8 Spindle)
Painted
H34822UC1-BTR
Trailer Parts Pro complete hub assembly
Painted
H34822UC1-BTR-ZL
Trailer Parts Pro complete Zerk-Lubed hub assembly
Painted
H34822BX-116
Trailer Parts Pro complete boxed hub assembly
Painted

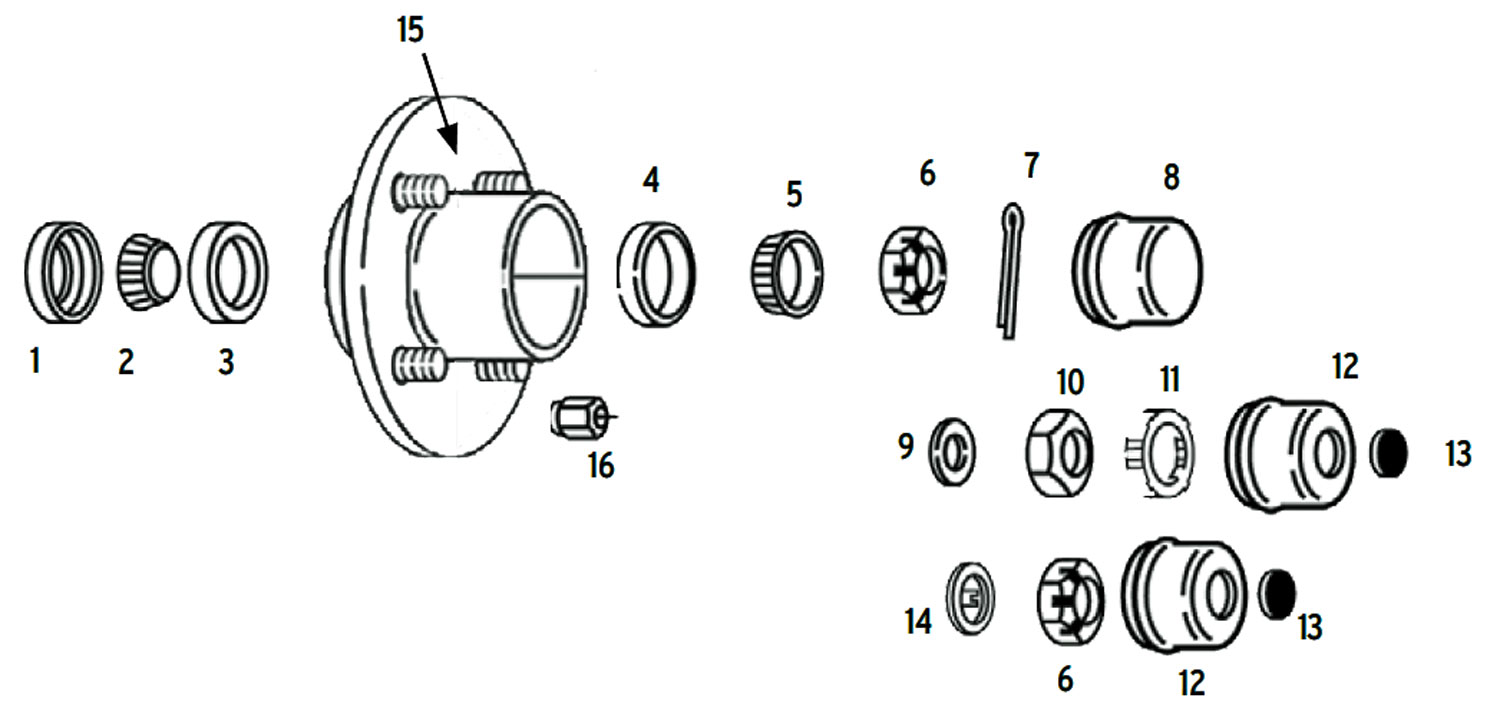

PART NO.
REF. NO.
DESCRIPTION
ITEM
10-60
Grease Seal, 1.987" OD X 1.5" ID, Double Lip
1
L44649
Inner/Outer Bearing
2 & 5
L44610
Inner/Outer Race
3 & 4
6-176
Spindle Nut, 1"-14 12 Castellation
6
165686
Spindle Nut, 1"-14 6 Castellation
6
46749
Grease Cap, 1.986" OD, Drive-In
8
5-23
Spindle washer, 1" D-Style (E-Z lube after 2002)
9
6-191
Spindle nut for 6-190 retainer (E-Z lube after 2002)
10
6-190
Spindle nut retainer for 6-191 retainer (E-Z lube after 2002)
11
21-41-1
Grease cap, 1.986" OD drive-in for EZ-Lube
12
85-1
Rubber plug for EZ-Lube grease cap
13
5-101
Spindle washer 1" tang-style (E-Z lube after 2002)
14
D09251510
Stud, 1/2" Diameter, Drive-In
15
D007-246-00
Stud, 1/2" Diameter, Drive-In
15
X1023R
Wheel Nut, 1/2" Cone Style
16
25-53
Stud 1/2" Diameter, Screw-In for older style idler hubs
NS
