Trailer Hubs 8 Bolt On 6 1/2 " Bolt Circle For 8,000 lb. Axles
  • 25580 inner/D02475 outer bearings
  • Fits Dexter 8,000 lb. axles
  • Oil bath applications
  • 9/16" studs with cone nuts

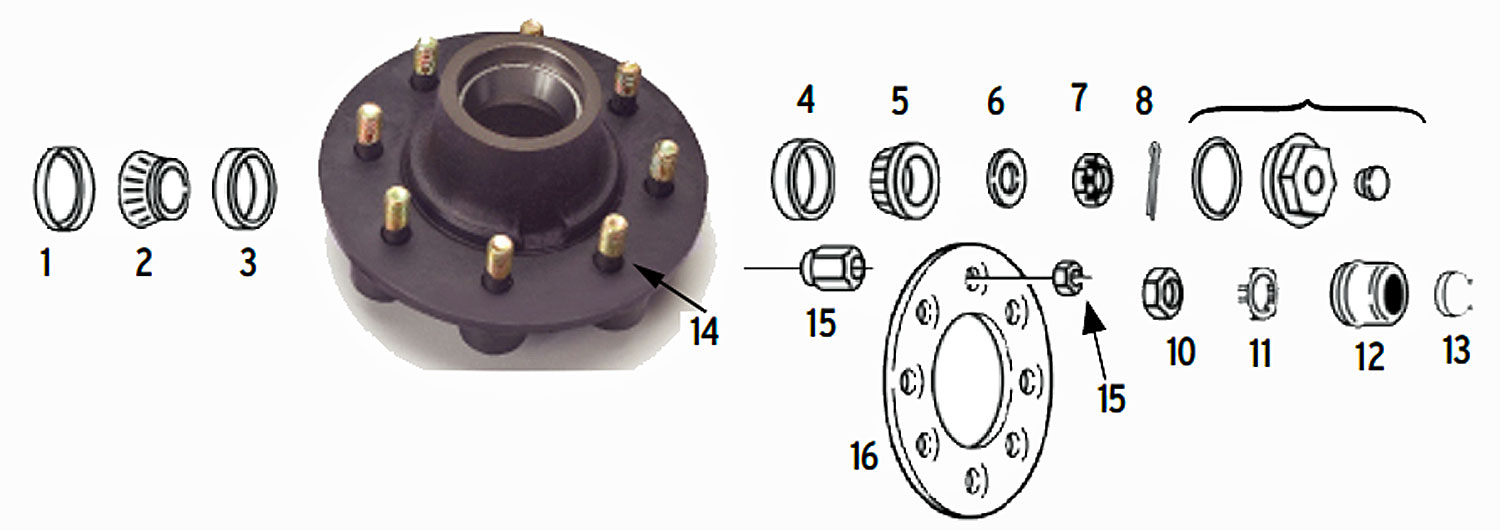

Hub trailer 8 bolt on 6 1/2 for 8,000 lb. axles Parts Illustration
HUB ASSEMBLIES
PART NO.
REF. NO.
DESCRIPTION
LUB.
STUD
8-287-14
Dexter oil bath hub with studs and races
Oil
9/16"
8-287-14UC1
Dexter complete oil bath hub assembly
Oil
9/16"
REPLACEMENT PARTS
PART NO.
REF. NO.
DESCRIPTION
ITEM
10-36
Grease Seal, 3.376" OD X 2.25" ID, Double Lip
1
10-63
Oil Seal, Unitized 3.376" OD X 2.25" ID
1
25580
Inner Bearing
2
25520
Inner Race
3
D02420
Outer Race
4
D02475
Outer Bearing
5
5-57
Spindle washer, D-Style
6
6-176
Spindle Nut, 1"-14 12 Castellation
7
165686
Spindle Nut, 1"-14 6 Castellation
7
165649
Cotter Pin
8
RG04-230
Complete Oil Cap Kit
9
K21-303-00
Complete Oil Cap Kit
9
6-191
Spindle nut for 6-190 retainer (E-Z lube after 2002)
10
6-190
Spindle nut retainer for 6-191 retainer (E-Z lube after 2002)
11
21-43-1
Grease cap, 2.72" OD drive-in for EZ-Lube
12
85-1
Rubber plug for EZ-Lube grease cap
13
7-132
Stud, 9/16" Diameter, Drive-In Style 2.3" long
14
7-232
Stud, 5/8" Diameter, Drive-In Style 2.75" long
14
6-53
Wheel Nut, 9/16" Cone Style
15
6-109
Wheel Nut, 5/8" Cone Style
15
33-52-1
Wheel Retaining Ring
16
46-52
Oil Hub Plug
NS
95188
Wheel Nut, 5/8" Flanged
NS
