Dexter/Lippert Axles: Kodiak 12K Dual Wheel Trailer Disc Brakes
- 28622 Outer/3920 Inner Bearings
- Fits Dexter/Lippert 12,000 lb. dual wheel axles
- Oil Bath Lubrication

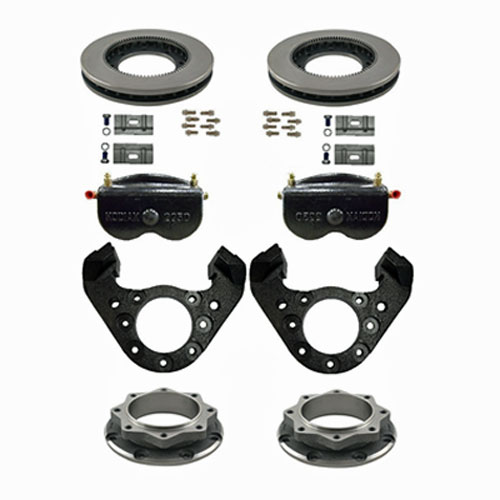

- Disc Kit includes Rotors, Calipers, Brackets and Spacers for one axle.
KODIAK #
DEXTER #
DESCRIPTION
2/R-11-12D-HD-REER
Kodiak Dexter/Lippert 12k dual wheel with leaf spring suspension one axle Disc Brake Set automotive finish rotor, E-coat caliper

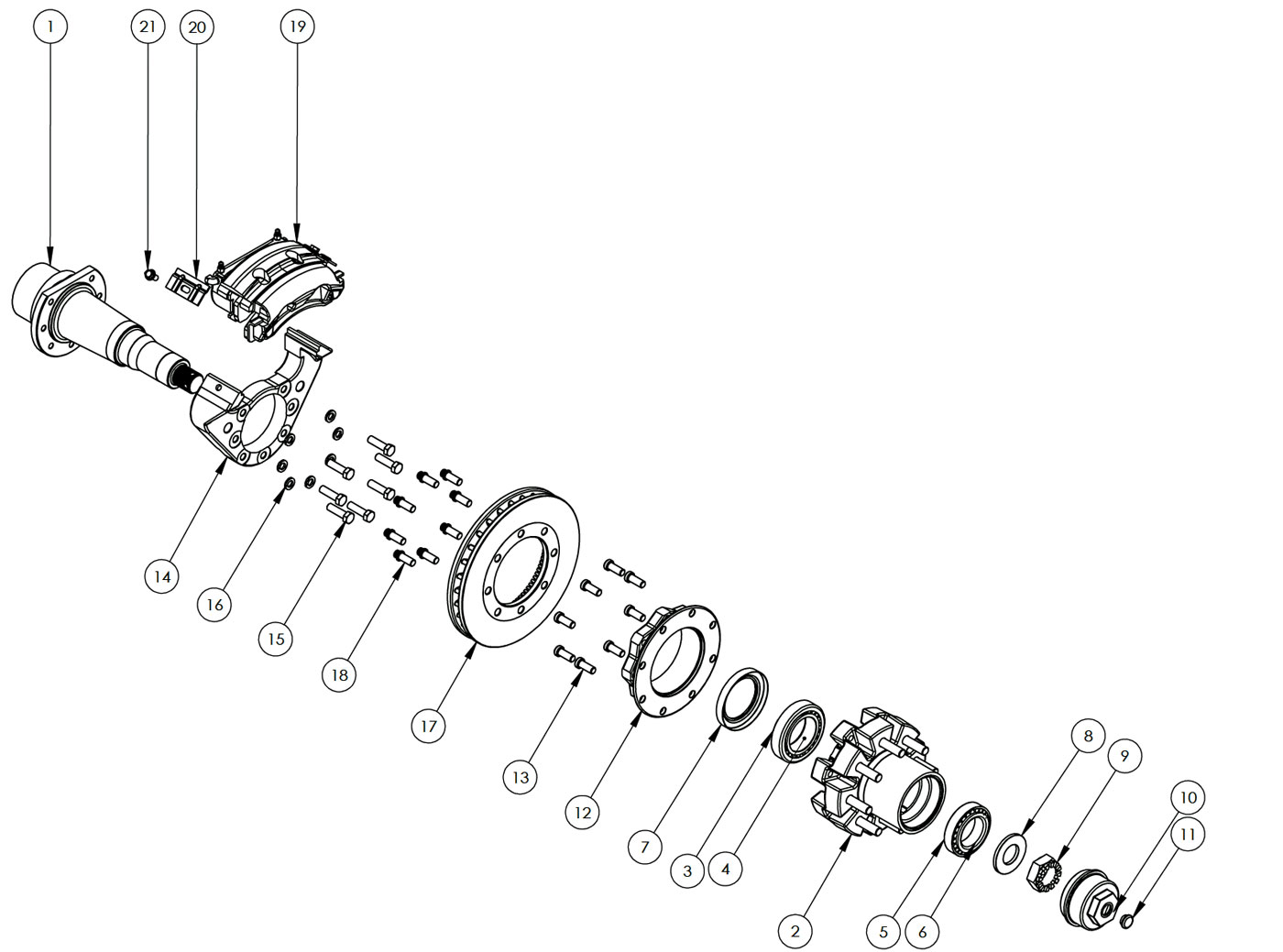

KODIAK #
DEXTER #
DESCRIPTION
ITEM
N/A
Dexter/Lippert 12K Spindle
1
8-214-8UC1
Dexter 12k hub kit
2
3984
Inner Bearing Cone
4
28622
Outer Bearing Cup
5
28682
Outer Bearing Cone
6
10-56
Oil Seal 010-056-00
7
12011
Polycarbonate cap assembly with O-ring and rubber plug
10
Q-10K-RBR-PLUG
Dustcap Plug
11
RTR-11-12Q-SPCR
Spacer adapts ROTOR-11-12Q to Dexter and Rockwell 12K hub
12
HUB/SPACER-11-12L-LHSCS
H/S-11-12L-LHSCS
1/2" low head socket cap screw with nylon patch
13
CMB-11-12D-E
E-Coated caliper mounting bracket for Dexter/Lippert 12k seven hole brake flange
14
CMB-11-12D-HD-E
E-Coated caliper mounting bracket for Dexter/Lippert 12k seven hole brake flange
14
1/2-20UNF x 1 3/4 Hex Bolt Reference
15
1/2 Lock Washer Reference
16
RTR-11-10Q
11.35" Automotive finish rotor for 12k axle
17
ROTOR-11-13-BOLT
1/2-13UNCx1 1/4 Flange Head Reference Only
18
DBC-2250-E
E- Coated Caliper with 2 - 2 1/2" nickel chrome plated pistons; ceramic pads; with mounting clips
17
DBC-HD-CLIP-REPL
Replacement clip and flange bolt for DBC-2250 and DBC-338HD caliper (2 clips, 2 bolts).
20
CALIPER REPLACEMENT PARTS
KODIAK #
DEXTER #
DESCRIPTION
DBC-2250-CRM-PAD
Ceramic pad for 2250 and 338HD disc brake caliper
DBC-250-PSTN-SS
2 1/2" Stainless Steel Piston; standard on dacromet coated and stainless steel calipers
DBC-250-PSTN
2 1/2" Nickel Chrome Piston; standard on E-coated calipers
DBC-250-SEAL
EPDM Piston Seal
DBC-250-BOOT-SI
Silicone Dust Boot with stainless steel compression ring
DBC-FIF-MP-90
Adapter Port 90 degree 1/8" NPT to 3/16" FIF
DBC-NPT-ADP/BBS
Brass Bleed Port (1/4"-28 Bleed Screw w/1/8" NPT Adapter
DBC-NPT-PLUG
1/8" Brass Pipe Thread Plug
