Rockwell American Axles: Kodiak 12K Dual Wheel Trailer Disc Brakes
- 39590 Inner/JM205149 Outer Bearing
- Fits Rockwell American 12,000 lb. dual wheel axles
- Oil Bath Lubrication

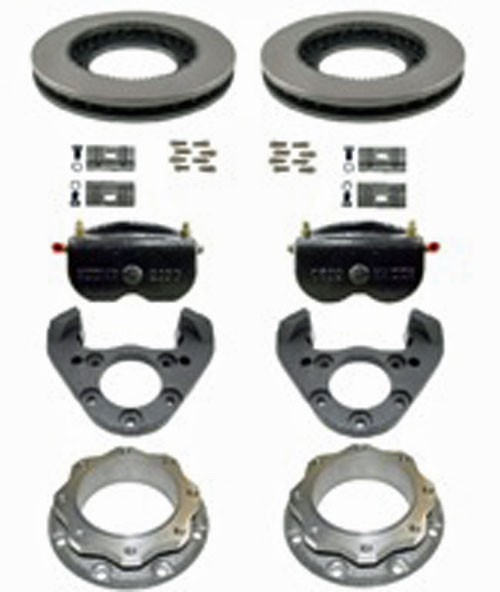

- Disc Kit includes Rotors, Calipers, Brackets and Spacers for one axle.
KODIAK #
DEXTER #
DESCRIPTION
2/R-11-12Q-HD-REER
Kodiak Rockwell American 12k dual wheel one axle Disc Brake Set automotive finish rotor, E-coat caliper

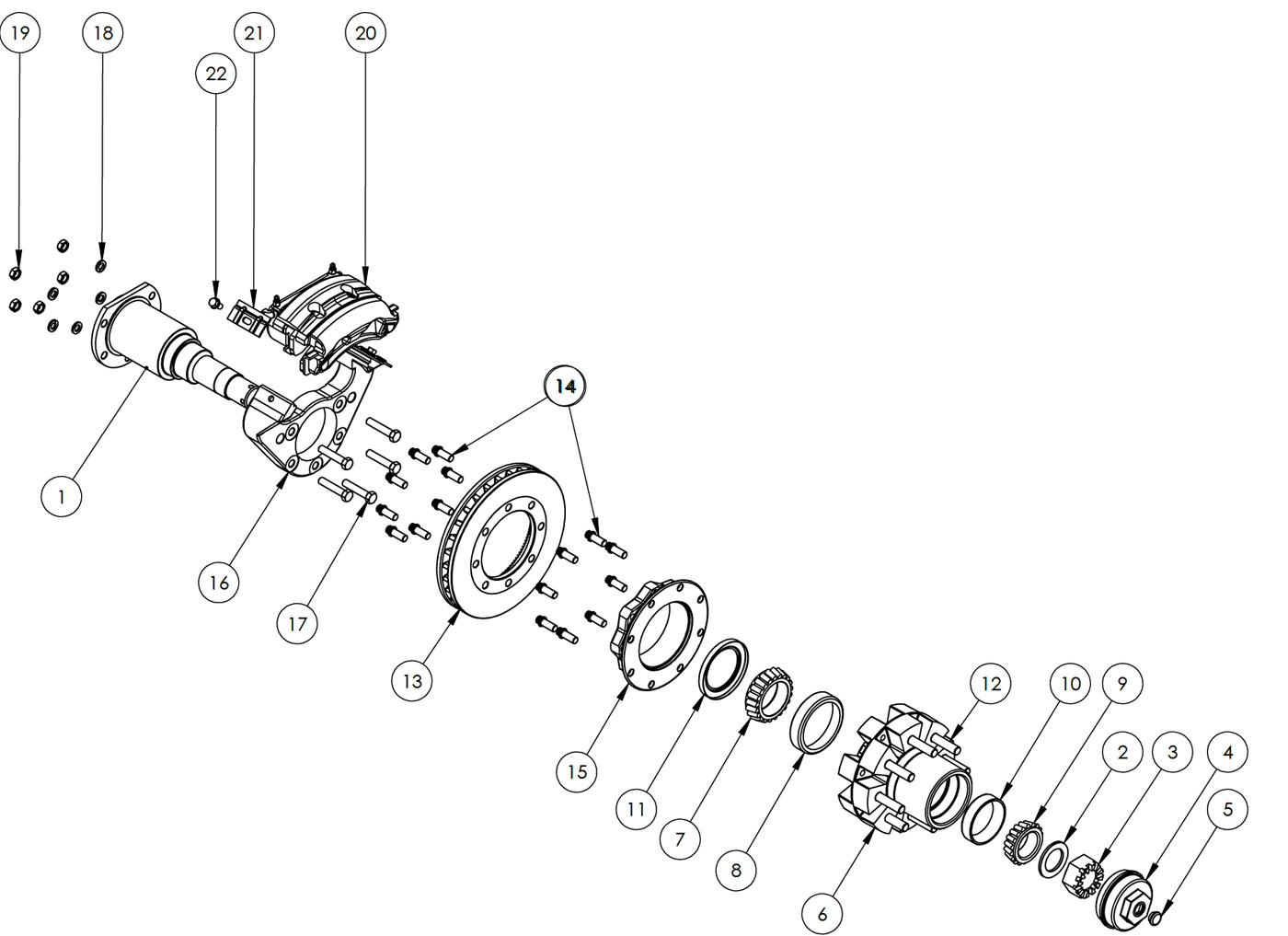

KODIAK #
DEXTER #
DESCRIPTION
ITEM
N/A
Rockwell American 10K #160 Spindle
1
12011
Polycarbonate cap assembly with O-ring and rubber plug
4
Q-10K-RBR-PLUG
Dustcap Plug
5
39590
Inner Bearing Cone
7
39520
Inner Bearing Cup
8
JM205149
Outer Bearing Cone
9
JM205110
Outer Bearing Cup
10
N/A
Oil Seal 091023 OR 568217
7
Rockwell American Wheel Bolt
12
11.35" Rotor automotive finish 9/10K Rockwell American axle 1/2" mounting holes
13
ROTOR-11-13-BOLT
1/2-13UNCx1 1/4 Flange Head Reference Only
14
RTR-11-12Q-SPCR
Spacer adapts ROTOR-11-12Q to Dexter and Rockwell 12K hub
15
E-Coated caliper mounting bracket for DBC-2250; Rockwell 12K five hole brake flange,
16
1/2-20UNF x 2 1/2 Hex Bolt
17
DBC-2250-E
E- Coated Caliper with 2 - 2 1/2" nickel chrome plated pistons; ceramic pads; with mounting clips
17
DBC-HD-CLIP-REPL
Replacement clip and flange bolt for DBC-2250 and DBC-338HD caliper (2 clips, 2 bolts).
20
CALIPER REPLACEMENT PARTS
KODIAK #
DEXTER #
DESCRIPTION
DBC-2250-CRM-PAD
Ceramic pad for 2250 and 338HD disc brake caliper
DBC-250-PSTN-SS
2 1/2" Stainless Steel Piston; standard on dacromet coated and stainless steel calipers
DBC-250-PSTN
2 1/2" Nickel Chrome Piston; standard on E-coated calipers
DBC-250-SEAL
EPDM Piston Seal
DBC-250-BOOT-SI
Silicone Dust Boot with stainless steel compression ring
DBC-FIF-MP-90
Adapter Port 90 degree 1/8" NPT to 3/16" FIF
DBC-NPT-ADP/BBS
Brass Bleed Port (1/4"-28 Bleed Screw w/1/8" NPT Adapter
DBC-NPT-PLUG
1/8" Brass Pipe Thread Plug
