KODIAK #
DEXTER #
DESCRIPTION
2/RCMHS-13-12H
2/H-13-12H-RERR
Kodiak 12k Special Single wheel one axle Disc Brake Set automotive finish rotor, E-coat caliper
2/H-13-12H-DDDD
Kodiak 12k Special Single wheel one axle Disc Brake Set dacromet coat rotor and caliper
2/H-13-12H-DSDD
Kodiak 12k Special Single wheel one axle Disc Brake Set dacromet coat rotor and stainless steel caliper
2-H-13-12H-HD-REER
Kodiak 12k Special Single wheel one axle Disc Brake Set automotive finish rotor, E-coat caliper
2-H-13-12A-HD-REER
Kodiak 12k Special Single wheel one axle Disc Brake Set (Rockwell/Al-ko) automotive finish rotor, E-coat caliper
2-R-13-12D-HD-REER
Kodiak 12k Special Single wheel one axle Disc Brake Set (Dexter/Lippert) automotive finish rotor, E-coat caliper

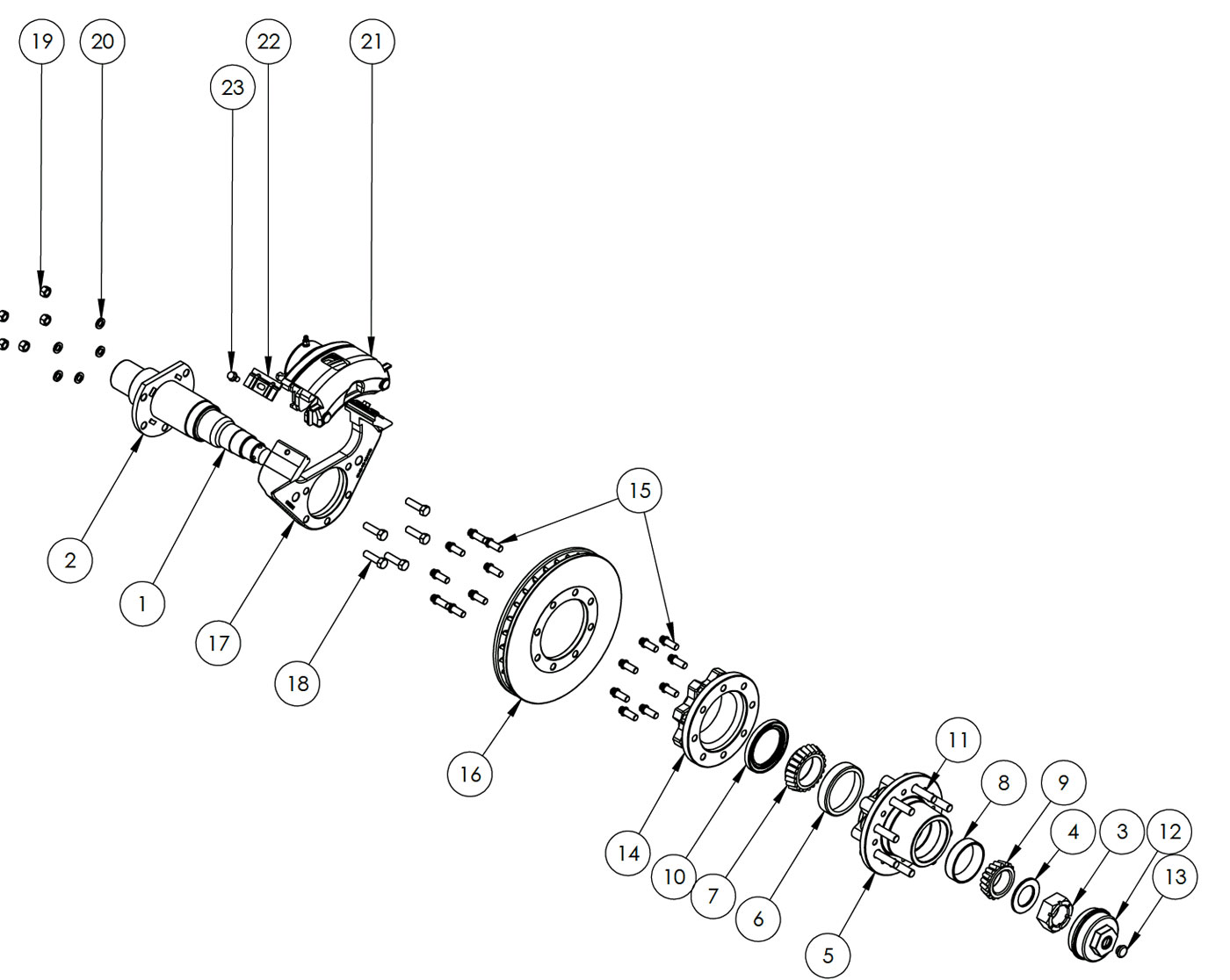

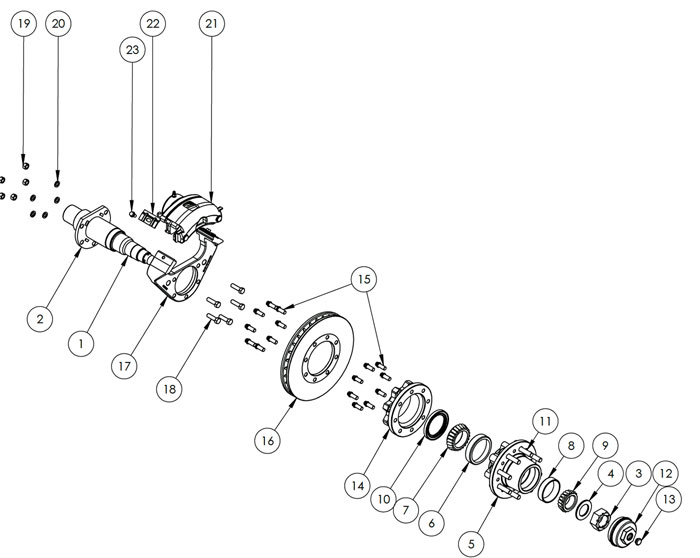

KODIAK #
DEXTER #
DESCRIPTION
ITEM
H/S-120-SW
Hub for #120 spindle, 4.78" brake flange to inner bearing shoulder, 4.88" pilot standard
5
H/S-120-SW-D
Hub for #120 spindle, 4.78" brake flange to inner bearing shoulder, 4.88" pilot standard
5
JM511910
Inner Bearing Cup
6
JM511946
Inner Bearing Cone
7
JM205110
Outer Bearing Cup
8
JM205149
Outer Bearing Cone
9
R/H-LB3.165
Drive-In Wheel Stud 5/8" X 3.165"
11
12011
Polycarbonate cap assembly with O-ring and rubber plug
12
Q-10K-RBR-PLUG
Dustcap Plug
13
RTR-11-12Q-SPCR
Spacer adapts ROTOR-11-12Q to Dexter and Rockwell 12K hub
14
ROTOR-11-13-BOLT
1/2-13UNCx1 1/4 Flange Head Reference Only
15
RTR-13-10
13" Rotor automotive finish 10K axle
16
RTR-13-10-D
13" Dacromet coated rotor 10K axle
16
CMB-13-10Q-E
E-coated caliper mounting bracket with 7 holes for 9 & 10K Dexter torsion axle; 13" rotor
17
CMB-13-10Q-D
Dacromet coated caliper mounting bracket with 7 holes for 9 & 10K Dexter torsion axle; 13" rotor
17
CMB-13-10A-HD-E
E-Coated caliper mounting bracket for Rockwell five hole brake flange
14
CMB-11-12D-HD-E
E-Coated caliper mounting bracket for Dexter/Lippert 12k seven hole brake flange
14
CMB-13-10D-HD-E
E-coated caliper mounting bracket with 5 holes for Dexter axle
17
1/2-20UNF x 2 Hex Bolt Reference
18
1/2 Lock Washer Reference
19
1/2-20UNF NUT Reference
20
DBC-338-E
Loaded E-coated caliper for 10K rotor; ceramic pads; nickel chrome piston
21
DBC-338-D
Loaded Dacromet coated caliper for 10K rotor; ceramic pads; nickel chrome piston
21
DBC-338-SS
Loaded Stainless Steel caliper for 10K rotor; ceramic pads; nickel chrome piston
21
DBC-338-HD-E
Loaded E-coated caliper for 10K rotor; ceramic pads; nickel chrome piston; with mounting clips
21
DBC-HD-CLIP-REPL
Replacement clip and flange bolt for DBC-2250 and DBC-338HD caliper (2 clips, 2 bolts).
22-23
CALIPER REPLACEMENT PARTS
KODIAK #
DEXTER #
DESCRIPTION
DBC-338-PSTN
3-3/8" nickel/chrome plated steel piston; standard in E-coat calipers
DBC-338-PSTN-SS
3 3/8" Stainless Steel Piston; standard on dacromet coated and stainless steel calipers
DBC-338-BOOT
EPDM dust boot for 338 piston
DBC-338-SEAL
EPDM Piston Seal
DBC-338-MHBSB
Guide bolt sleeve bushing for DBC-338 caliper
DBC-FIF-MP-90
Adapter Port 90 degree 1/8" NPT to 3/16" FIF
DBC-NPT-ADP/BBS
Brass Bleed Port (1/4"-28 Bleed Screw w/1/8" NPT Adapter
DBC-HD-CLIP-REPL
Replacement clip and flange bolt for DBC-2250 and DBC-338HD caliper (2 clips, 2 bolts).
DBC-338-CRM-PAD
Ceramic pad for 338 disc brake caliper (Standard on DAC and stainless steel calipers)
