Kodiak 3.5K 8" Rotor Trailer Disc Brakes
- L68149 Inner/L44649 Outer Bearings
- Fits #84 Spindle (Most 3,500 lb. axles)
- Standard Grease & Ez-Lube Applications

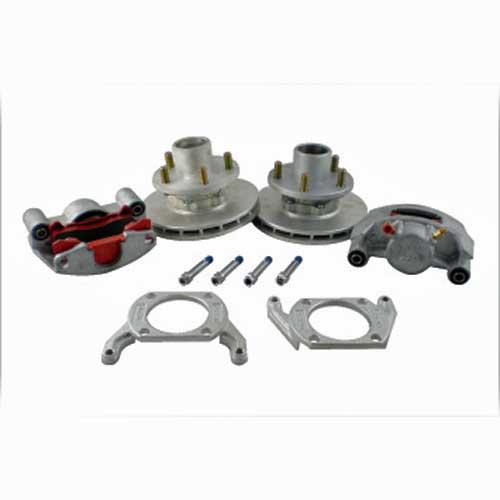

- Disc Kit includes Rotors, Calipers & Brackets for one axle.
KODIAK #
DEXTER #
DESCRIPTION
| 2/RCMHS-8-3-DAC
2/H-8-3-DDDD-SB
Kodiak One Axle Disc Brake Set 3.5K Dacromet 8"

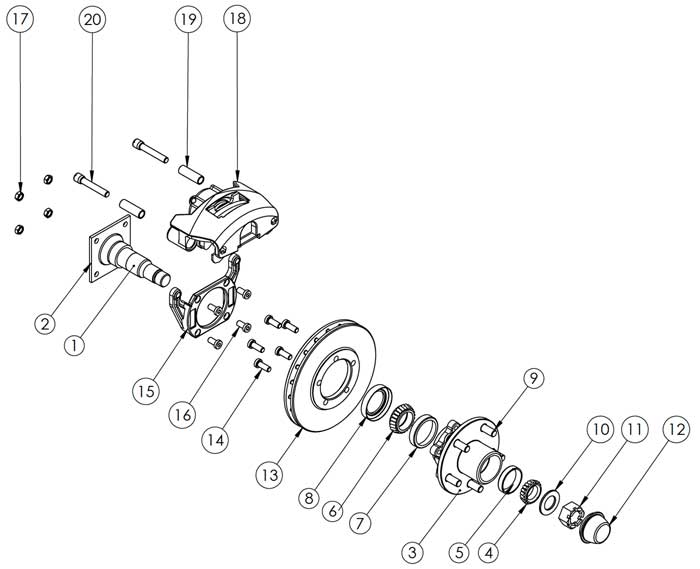

KODIAK #
DEXTER #
DESCRIPTION
ITEM
H/S-84-D
Dacromet coated hub/spacer; 545 bolt pattern; 1/2" wheel bolts
3
L44649
Outer bearing cone
4
L44610
Outer bearing cup
5
L68149
Inner Bearing Cone
6
L68111
Inner Bearing Cup
7
473336
Seal 473336 (NATIONAL)
8
R/H-LB-1.69
1/2-20 x 1.69 GR 8 Yellow Zinc Wheel Bolt; 0.544" knurl diameter
9
RTR-8-3-D
8" dacromet coated rotor
13
H/S-84-BOLT
3/8-16x3/4 low profile socket head cap screw rotor mounting bolt
14
CMB-8-3B-DAC
Dacromet coated caliper mounting bracket for 8" rotor, bolt on; #84 spindle
15
3/8-16UNC x 3/4 HEX CAP SCREW Reference Only
16
3/8-16UNC HEX NUT Reference Only
17
DBC-225-SB-D
Dacromet coated loaded caliper for surge brake only with ceramic pads
18
DBC-MHBS
Stainless Steel Guide Bolt Sleeve
19
DBC-MHGB
Stainless steel guide bolt (M11 x 1.5) w/Thread Locker (5/16" Allen or 1/2" Hex)
20
CALIPER REPLACEMENT PARTS
KODIAK #
DEXTER #
DESCRIPTION
DBC-225-CERM-PAD
Friction Pads (Ceramic Standard)
DBC-225-CERM-PAD-SS
Friction Pads (Ceramic with stainless steel backing plate)
DBC-225-PSTN-SS
2 1/4" Stainless Steel Piston
DBC-225-SEAL
EPDM Piston Seal #4986
DBC-225-BOOT-SI
Silicone Dust Boot #4985
DBC-FIF-MP-90
Adapter Port 90 degree 1/8" NPT to 3/16" FIF
DBC-NPT-ADP/BBS
Brass Bleed Port (1/4"-28 Bleed Screw w/1/8" NPT Adapter
DBC-NPT-PLUG
1/8" Brass Pipe Thread Plug
DBC-MHBSB
EPDM Bushing For Guide Bolt Sleeve
N/A
DBC-MB
O-ring for Guide Bolt Sleeve (Use For OLDER Design) Reference Only
DBC-225-K
Disc Brake Caliper Rebuild Kit- includes 1 boot, 2 bushings, 2 guide bolts, 1 seal and 1 stainless steel piston
|
