Kodiak 7.2K 13" Slipover Rotor Trailer Disc Brakes
- 25580 Inner/02475 Outer Bearings
- Fits Dexter and most other 7,200 lb. axles
- Standard Grease & Oil Applications
- Disc Kit includes 2ea. Rotor, 1 pair Calipers with pads & Brackets for one axle. (Inner/Outer Bearings, Grease Seals, Caps & Wheel Nuts sold separately).
KODIAK #
DEXTER #
DESCRIPTION
| 2/RCM-133-7.2-9
2/R-133-7.2-9-REE
Kodiak One Axle Slipover Disc Brake Set 13" automotive finish rotor/E-coat caliper (fits 865 idler hub with 9/16" wheel bolts)

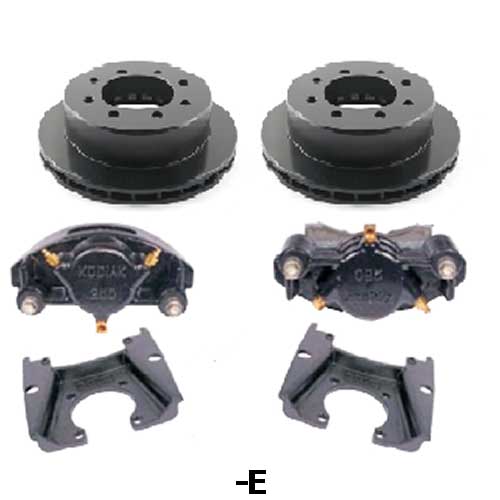

| 2/RCM-133-7.2-9-E
2/R-133-7.2-9-EEE
Kodiak One Axle Slipover Disc Brake Set E-coated rotor/caliper (fits 865 idler hub with 9/16" wheel bolts)
| 2/RCM-133-7.2-10
2/R-133-7.2-5-REE
Kodiak One Axle Slipover Disc Brake Set 13" automotive finish rotor/E-coat caliper (fits 865 idler hub with 5/8" wheel bolts)
| 2/RCM-133-7.2-10-E
2/R-133-7.2-5-EEE
Kodiak One Axle Slipover Disc Brake Set E-coated rotor/caliper (fits 865 idler hub with 5/8" wheel bolts)

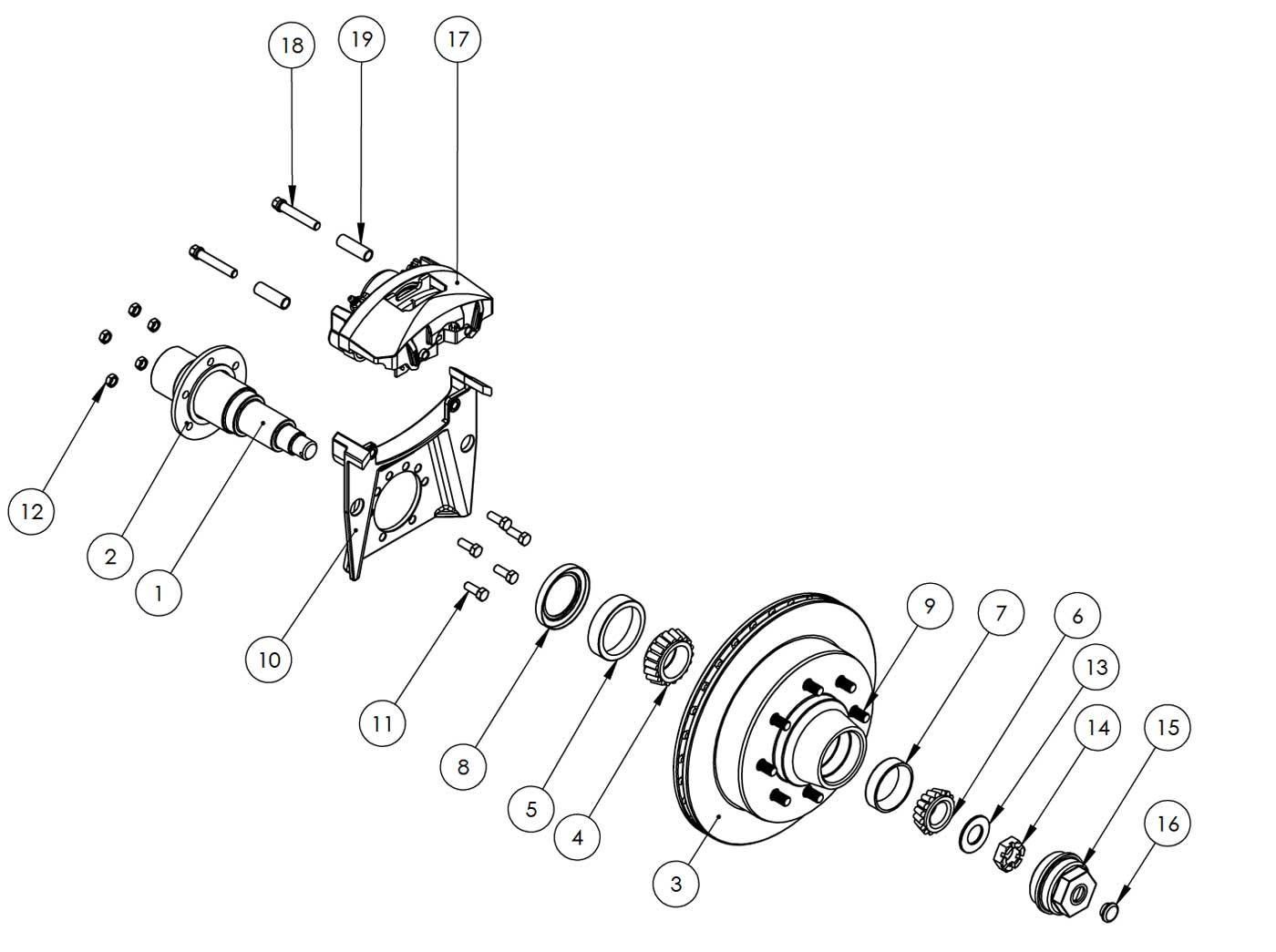

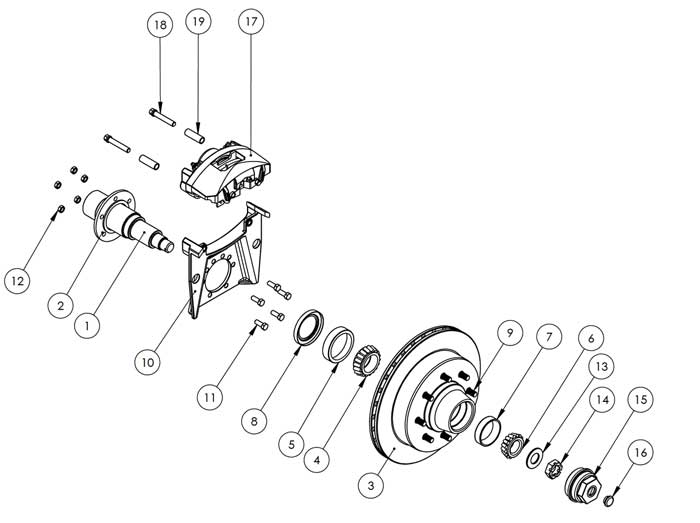

KODIAK #
DEXTER #
DESCRIPTION
ITEM
RTR-133-8-9
13" rotor automotive finish (fits 865 idler hub with 9/16" wheel bolts)
3
RTR-133-8-9-E
13" E-coated rotor (fits 865 idler hub with 9/16" wheel bolts)
3
RTR-133-8-5
13" rotor automotive finish (fits 865 idler hub with 5/8" wheel bolts)
3
RTR-133-8-5-E
13" E-coated rotor (fits 865 idler hub with 5/8" wheel bolts)
3
472920 (National)
Grease Seal
4
25580
Inner Bearing Cone
5
25520
Kodiak Inner Bearing Cup
6
02475
8K Hub on 7K axle Outer Bearing Cone
7
02420
8K Hub on 7K axle Outer Bearing Cup
8
R/H-LB2.5
Drive-In Wheel Stud 9/16" X 2.5"
9
R/H-LB3.165
Drive-In Wheel Stud 5/8" X 3.165"
9
CMB-133-7.2D-E
E-coated caliper mounting bracket for 7.2K axles
10
9/16-18UNF X 1 1/4 hex bolt Reference Only
11
9/16-18UNF Nut Reference Only
12
ROTOR/HUB-8K-PCAP
Polycarbonate Dustcap Reference Only
15
Q-10K-RBR-PLUG
Dustcap Plug
16
DBC-250-E
Loaded E-coated caliper for 13" rotor; ceramic pads; nickel chrome piston
17
ALN-1375-SS
1/2"-20X1.375" Acorn Lug Nut, 60 Degree, Stainless Steel
N/S
DBC-MHBS
Stainless Steel Guide Bolt Sleeve
18
DBC-MHGB
Stainless steel guide bolt (M11 x 1.5) w/Thread Locker (5/16" Allen or 1/2" Hex)
19
CALIPER REPLACEMENT PARTS
KODIAK #
DEXTER #
DESCRIPTION
DBC-250-CRM-PAD
Friction Pads (Ceramic standard on Dacromet coated calipers)
DBC-250-CRM-PAD-SS
Friction Pads (Ceramic with stainless steel backing plate - standard on stainless steel calipers)
DBC-250-PSTN-SS
2 1/2" Stainless Steel Piston; standard on dacromet coated and stainless steel calipers
DBC-250-PSTN
2 1/2" Nickel Chrome Piston; standard on E-coated calipers
DBC-250-SEAL
EPDM Piston Seal
DBC-250-BOOT-SI
Silicone Dust Boot with stainless steel compression ring
DBC-FIF-MP-90
Adapter Port 90 degree 1/8" NPT to 3/16" FIF
DBC-NPT-ADP/BBS
Brass Bleed Port (1/4"-28 Bleed Screw w/1/8" NPT Adapter
DBC-NPT-PLUG
1/8" Brass Pipe Thread Plug
DBC-MHBSB
EPDM Bushing For Guide Bolt Sleeve
N/A
DBC-MB
O-ring for Guide Bolt Sleeve (Use For OLDER Design) Reference Only
DBC-250-K
Disc Brake Caliper Rebuild Kit- includes 1 boot, 2 bushings, 2 guide bolts, 1 seal and 1 stainless steel piston
| | | |
