Ridewell Air-Ride Trailer Suspension
PART
REF
MAX
AXLE
RIDE
AXLE
TRAVEL
MIN
#
#
CAP
SIZE
HEIGHT
UP
DOWN
AXLE SPACE

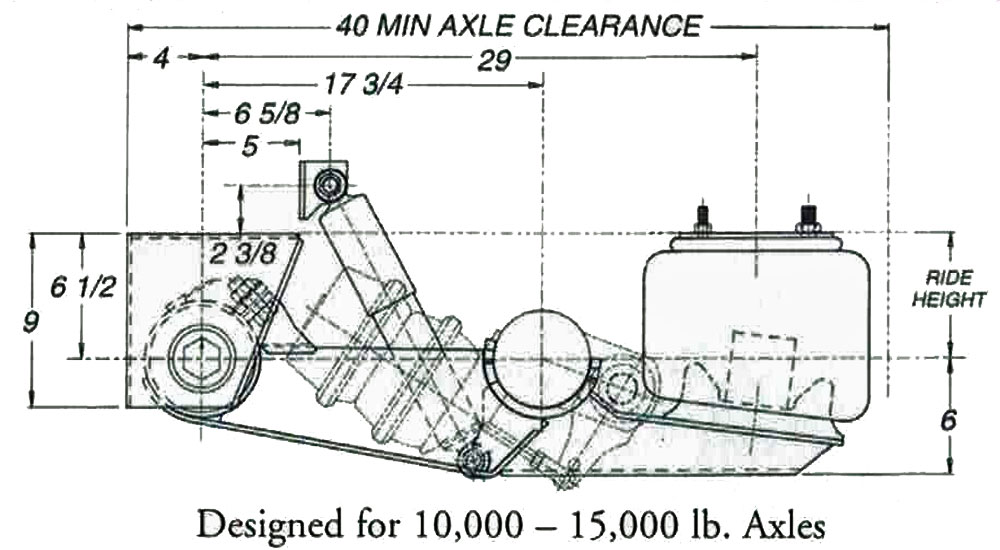

043600
15k
5"
Min 5.5"Max 6"
2.5"3"
3.5"3"
40"
2600080
043605
15k
5"
Min 5.5"Max 6"
2.5"3"
3.5"3"
40"

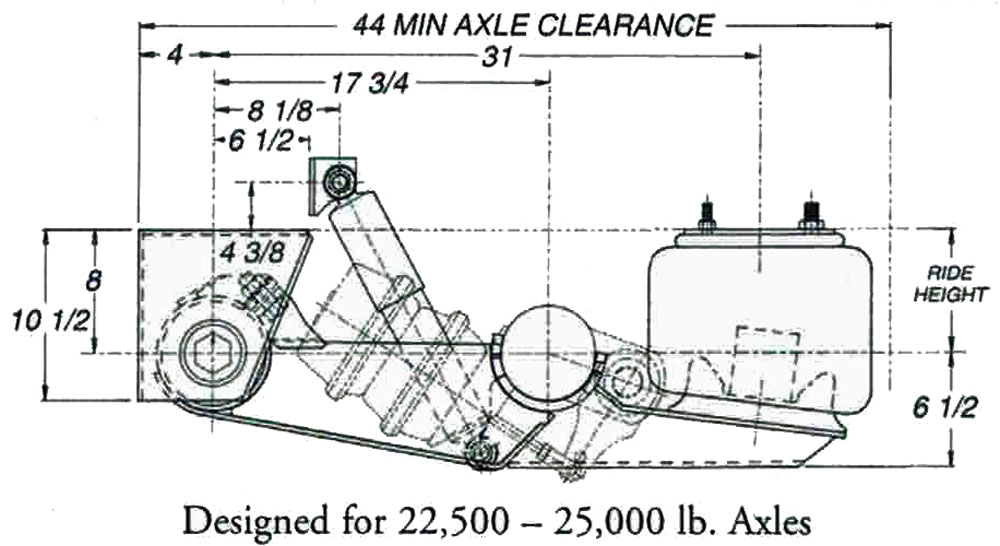

043650
25k
5"
Min 6 1/2"Max 7"
2.75"3.25"
3.75"3.25"
40"
Note: 6100054 Reference 043606 E-20 Torx Socket required to install 2400080 suspension.
043730
Hi-Flo Air Control Valve (1 Required per trailer with up to 3 axles) For 3/8" airline tubing using truck supplied air.
6330CGAE0C
043732
Low-Flo Air Control Valve (1 Required per trailer with up to 3 axles) For 1/4" airline tubing using auxiliary compressor.
043751
Air Compressor kit with Air Tank (for Trailers without air supply). NOTE: 6301CGAE01 height Control valve not included.
043752
Additional air tank kit (recommended for 3 axle with 2400080 & 2 axle or more with 2404106)
Because of individual installation requirements additional fittings and airline may be required.
The following table shows the minimum recommended hubface and axle wall thickness to be used with Ridewell Air-Ride suspensions.
DEXTER AXLE MODEL
WALL THICKNESS
S-CAM LENGTH
MINHUBFACE
10K HD
.44" (Special Order Option)
22.312"
66.50"
12K Hi-Profile
.44" Standard Tube
22.312"
66.62"
12K Lo-Profile
.44" Standard Tube
22.312"
73.12"
15K
.44" Standard Tube
22.312"
69.04"
D200 With 12.25" Brake
D2M12 Med
22.312"
69.50"
D200 With 16.50" Brake
D2M16 Med
23.437"
71.00"
Reminder: All 10-15K axles are ordered by hubface and all 20k and up are ordered by track.
