#10 Torflex® Axle Specifications

Suspension:

Features an independent suspension cushioned with rubber, providing a smooth, quiet ride with no transfer of road shock from one wheel to the other. (No springs required)

Bolt Pattern Options:

  • 5 on 4 1/2" (1/2" Studs)
  • 5 on 4 3/4" (1/2" Studs)
  • 5 on 5" (1/2" Studs)
  • 5 on 5 1/2" (1/2" Studs)
  • 6 on 5 1/2" (1/2" Studs)

Brake Options:

Some available with parking feature.
  • 10" x 2 1/4" Electric (Manual and Nev-R-Adjust®
  • 10" x 2 1/4" Hydraulic (Uni, Duo-Servo and Freebacking)
  • 10" X 2 1/4" Hydraulic Freebacking Corrosion Resistant (Galv/Marine Axle)
  • Hydraulic Disc: 5 on 4 1/2" only

Spindles:

Uses L68149 Inner and L44649 Outer Bearing
  • Long
  • Removable
  • Stainless Steel Wear Sleeves on Galvanized Axles

Tubing:

  • 2.62" OD Square

Lubrication:

  • Grease
  • E-Z Lube®
#10 Torflex® Mounting Details
Dexter Torflex Overhang Restrictions
Overhang Restrictions
SPINDLE
HUB TYPE
MINIMUM
MAXIMUM
Long
Idler/Drum
12.60"
23.60"
Long
Disc
13.12"
23.60"
Removable
Drum/Disc
13.12"
23.60"
Full Load Dimensions
Dimensions are for low profile, top mount only. High-Profile Brackets are .82" higher Side mount is .18" higher. Allow 3" bump clearance from full load.

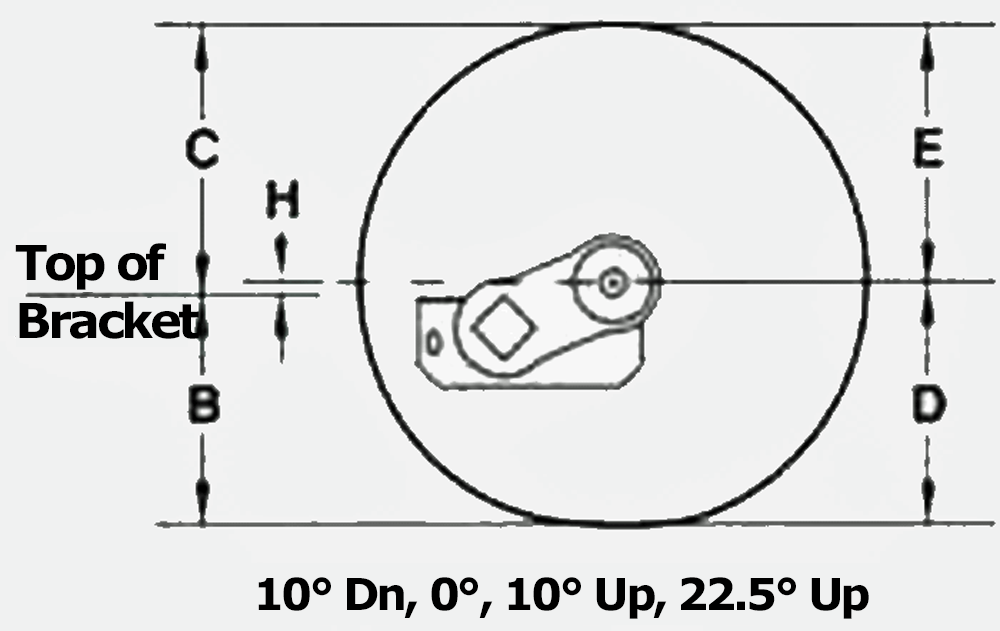

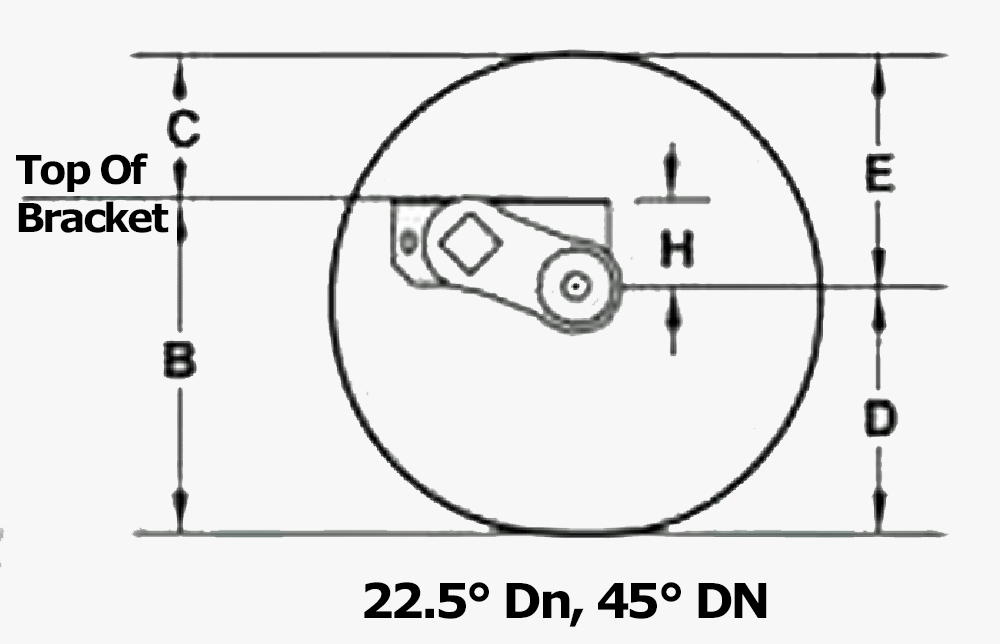

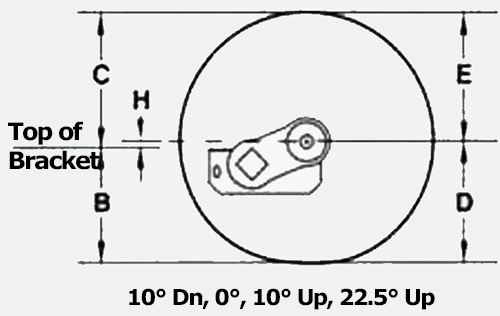

Dexter Torflex Axle Full Load Dimensions
Dexter Torflex Axle Full Load Dimensions
H=Center Line of Spindle to top of bracket. B=Top of bracket to ground. C=Top of bracket to top of tire.
D=Center Line of spindle to ground. E=Center Line of spindle to top of tire.
Start Angle

45° Down
22.5° Down
10° Down
0°
10° Up
22.5° Up

Tire
H
B
C
H
B
C
H
B
C
H
B
C
H
B
C
H
B
C
D
E
ST175/80R13
3.8
15.0
8.2
1.5
12.7
10.5
0.2
11.4
11.8
-0.8
10.4
12.8
-1.7
9.5
13.7
-2.8
8.4
14.8
11.2
12.0
ST205/75R14
3.8
15.9
9.3
1.5
13.6
11.6
0.2
12.3
12.9
-0.8
11.3
13.9
-1.7
10.4
14.8
-2.8
9.3
15.9
12.1
13.1
ST225/75R15
3.8
16.8
10.6
1.5
14.5
12.9
0.2
13.2
14.2
-0.8
12.2
15.2
-1.7
11.3
16.1
-2.8
10.2
17.2
13.0
14.4
Start Angle

45° Down

Tire
H
B
C
D
E
ST175/80R13
3.8
15.0
8.2
11.2
12.0
ST205/75R14
3.8
15.9
9.3
12.1
13.1
ST225/75R15
3.8
16.8
10.6
13.0
14.4

22.5° Down

Tire
H
B
C
D
E
ST175/80R13
1.5
12.7
10.5
11.2
12.0
ST205/75R14
1.5
13.6
11.6
12.1
13.1
ST225/75R15
1.5
14.5
12.9
13.0
14.4

10° Down

Tire
H
B
C
D
E
ST175/80R13
0.2
11.4
11.8
11.2
12.0
ST205/75R14
0.2
12.3
12.9
12.1
13.1
ST225/75R15
0.2
13.2
14.2
13.0
14.4

0°

Tire
H
B
C
D
E
ST175/80R13
-0.8
10.4
12.8
11.2
12.0
ST205/75R14
-0.8
11.3
13.9
12.1
13.1
ST225/75R15
-0.8
12.2
15.2
13.0
14.4

10° Up

Tire
H
B
C
D
E
ST175/80R13
-1.7
9.5
13.7
11.2
12.0
ST205/75R14
-1.7
10.4
14.8
12.1
13.1
ST225/75R15
-1.7
11.3
16.1
13.0
14.4

22.5° Up

Tire
H
B
C
D
E
ST175/80R13
-2.8
8.4
14.8
11.2
12.0
ST205/75R14
-2.8
9.3
15.9
12.1
13.1
ST225/75R15
-2.8
10.2
17.2
13.0
14.4
Articulation Dimensions
Dexter Torflex Start Angle Illustration
No
 Load
Full
Load
Start Angle
Bracket Profile
H
L
H
L
45° Down
Low
5.73"
4.24"
3.79"
5.54"
45° Down
High
6.55"
4.24"
4.61"
5.54"
32° Down
Low
4.67"
5.09"
2.48"
5.92"
32° Down
High
5.49"
5.09"
3.30"
5.92"
22° Down
Low
3.79"
5.54"
1.49"
6.00"
22° Down
High
4.61"
5.54"
2.31"
6.00"
10° Down
Low
2.53"
5.91"
0.19"
5.86"
10° Down
High
3.35"
5.91"
1.01"
5.86"
0°
Low
1.49"
6.00"
-0.81"
5.54"
0°
High
2.31"
6.00"
0.01"
5.54"
10° Up
Low
0.45"
5.91"
-1.73"
5.06"
10° Up
High
1.27"
5.91"
-0.91"
5.06"
22° Up
Low
-0.81"
5.54"
-2.75"
4.24"
22° Up
High
0.01"
5.54"
-1.93"
4.24"
